latest large format heat press transfer Printing Machine for fabric garment blanket

SHOP    Heat press machine    latest large format heat press transfer Printing Machine for fabric garment blanket


large format two platen Station pneumatic/hydraulic heat press machine

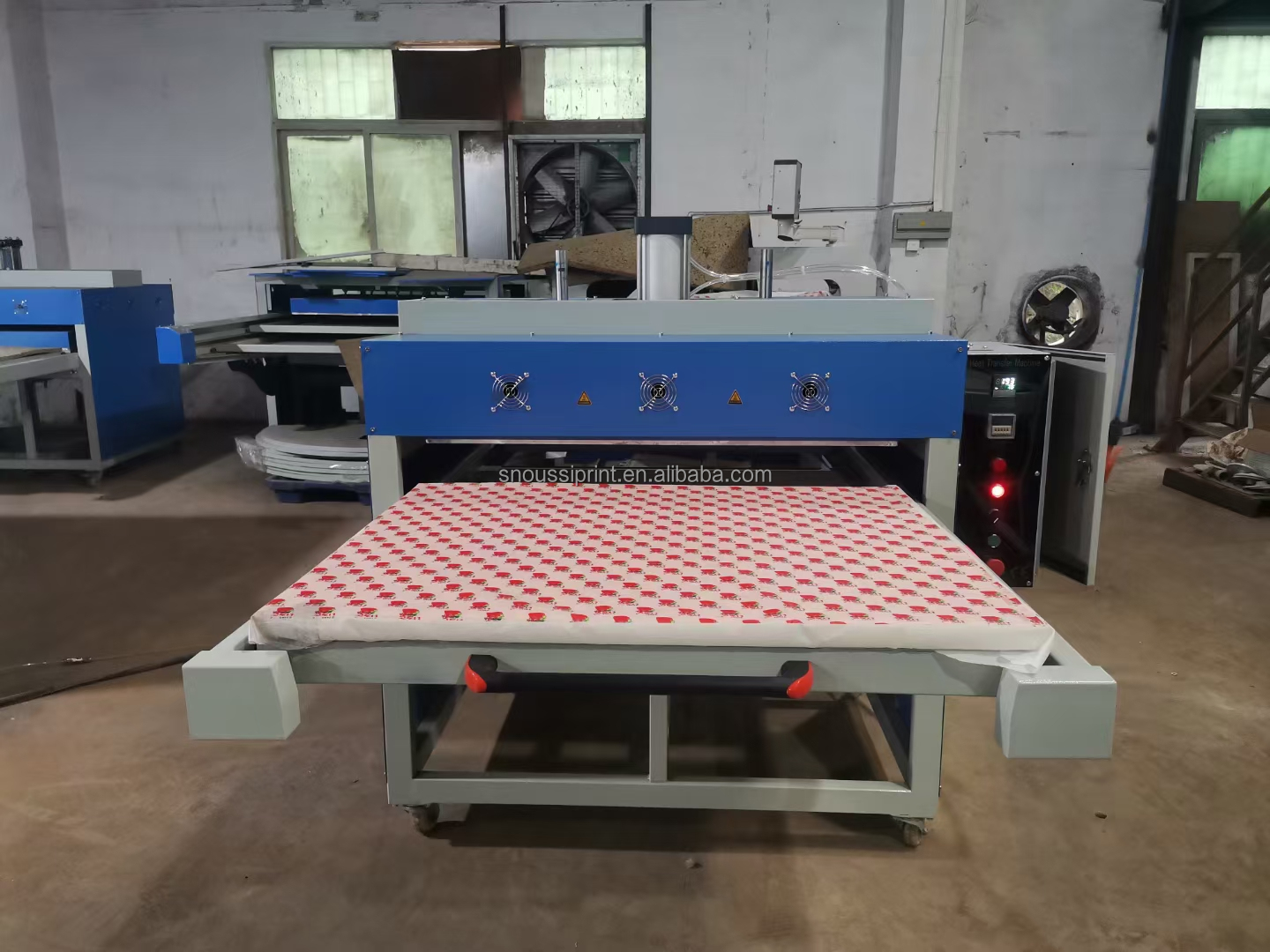

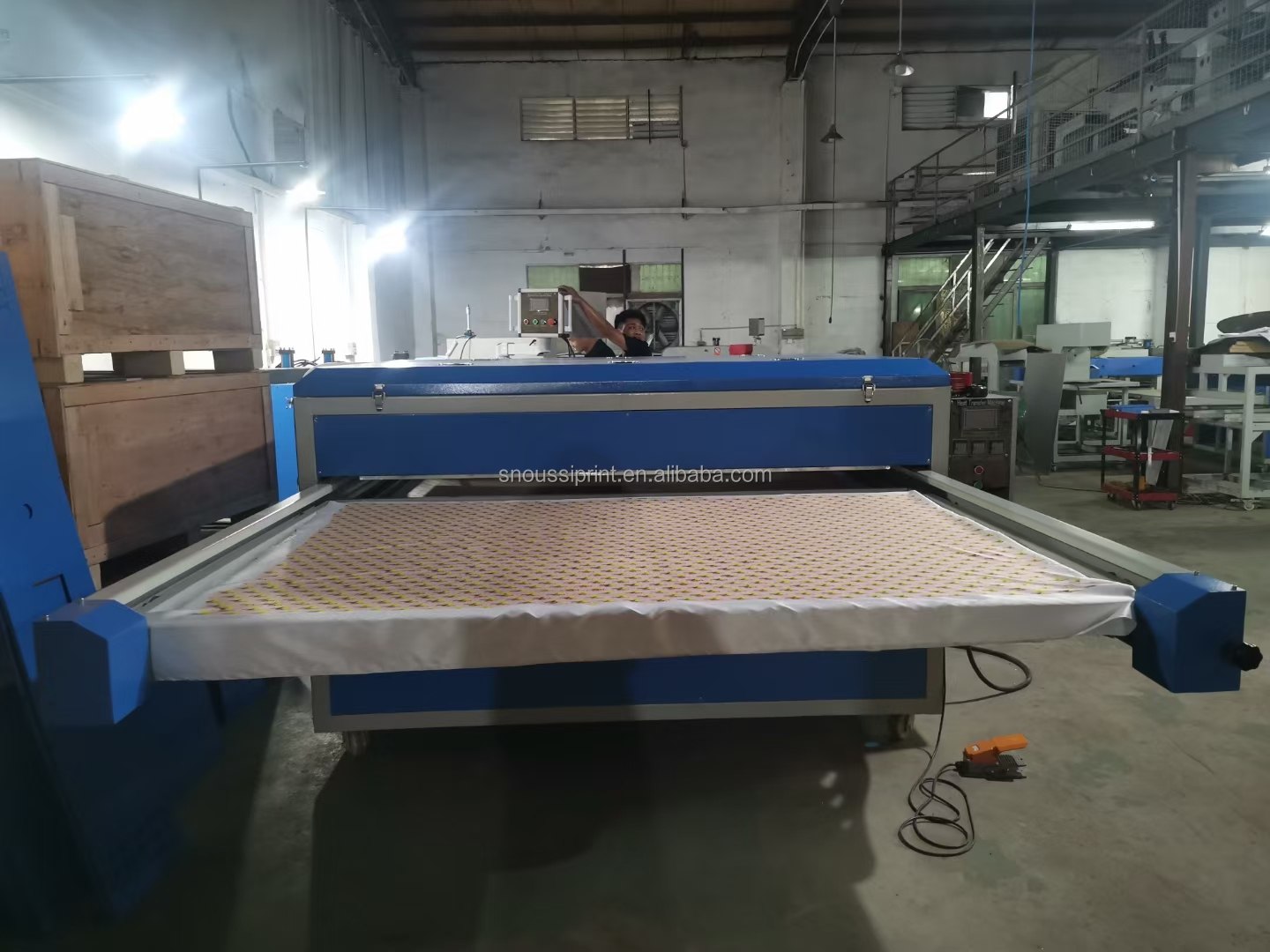

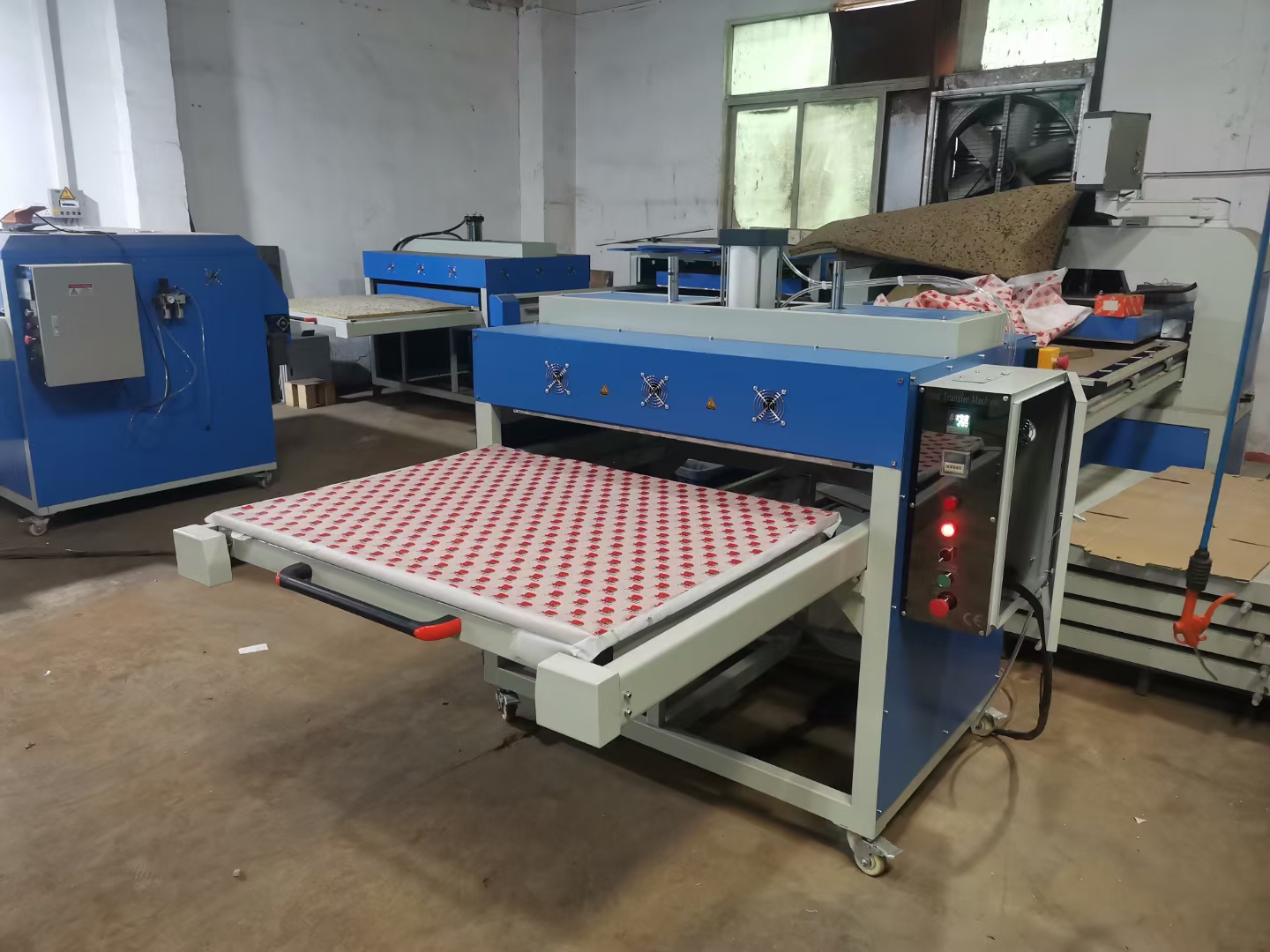

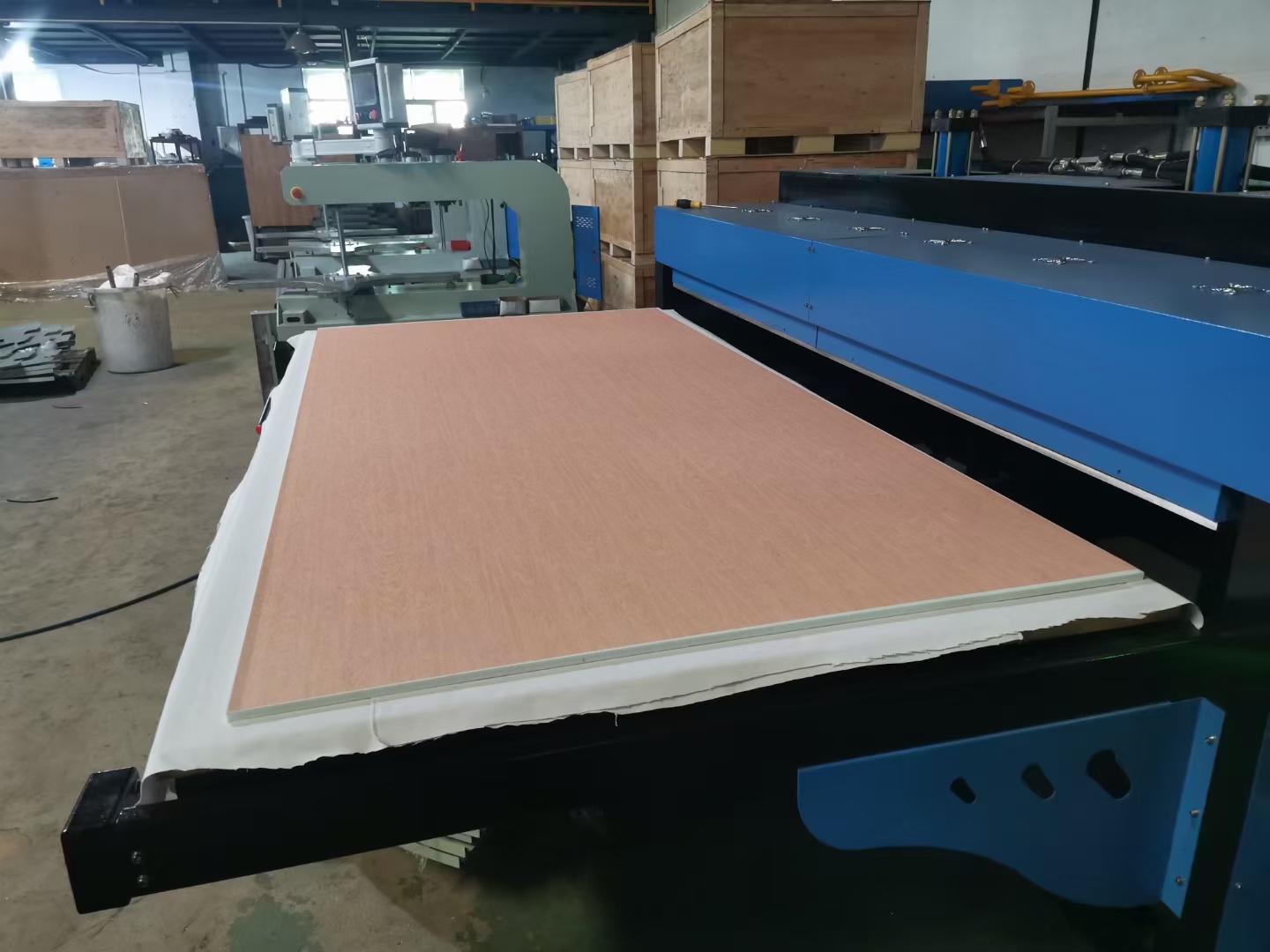

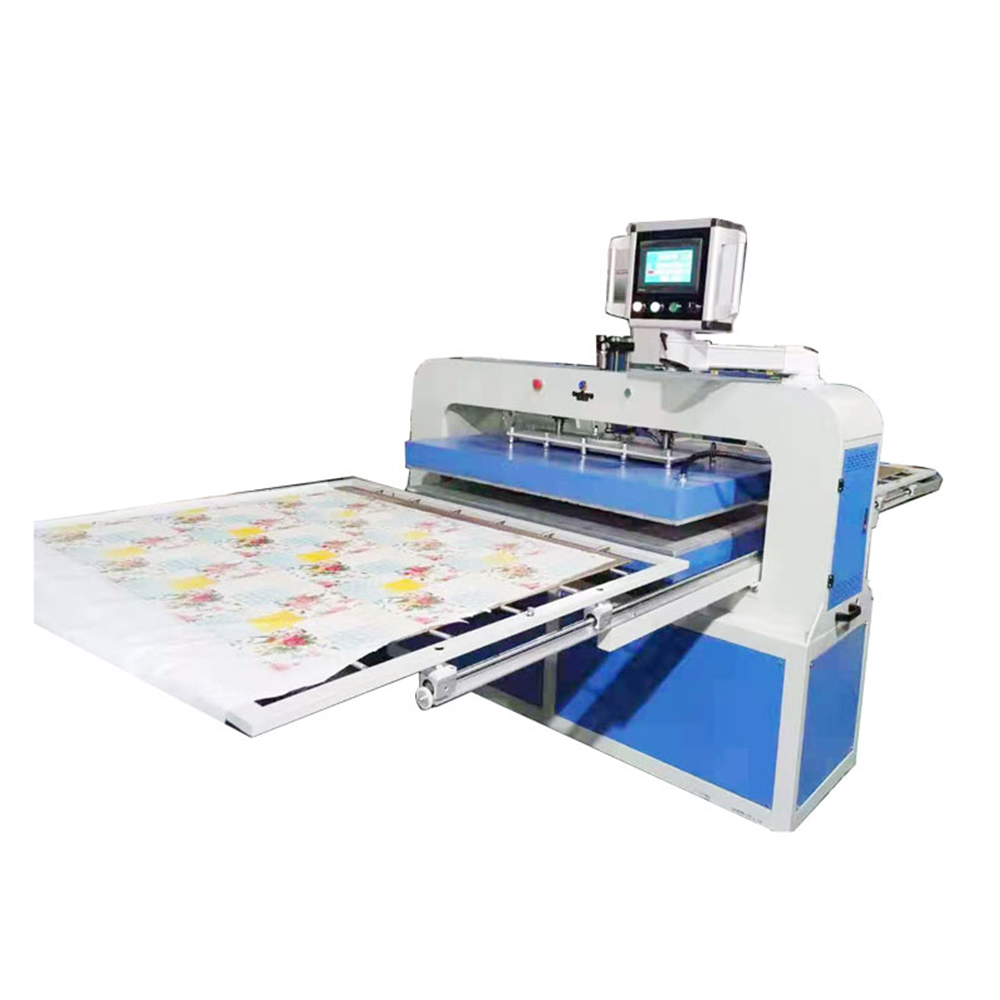

Flatbed Industrial Wide Format Heat Press Machine



Industrial Wide Format dual platen Flatbed Heat Press transfer machine,

it has been specifically designed to meet the increasing demand for cut part digital printing.

This method is widely used to print sport and team apparel.

Read More >>

Warranty: 24 months (Ink system, printheads and ink capping are not covered)

International Shipping: DHL,FedEx,By Air,By Sea



Advantage of SMT Flatbed Heat Press>>



Pneumatic dual station heat press machine Specification
#
platen size
Voltage
Pow.
Tem .C
heat time
Range -s
Work pressure
kg/sqr.m
weight
kgs
packing size cm
1
70*90cm
220/380V
9kw
0-399
0-999
0-8
500kg
140*83*147
2
80*100cm
220/380V
10.5kw
0-399
0-999
0-8
600kg
150*93*150
3
85*165cm
220/380V
13.5kw
0-399
0-999
0-8
750kg
215*100*150
4
100*120cm
220/380V
15.3kw
0-399
0-999
0-8
850kg
170*113*151
5
130*130cm
220/380V
17.7kw
0-399
0-999
0-8
900kg
180*143*155
6
120*150cm
220/380V
21kw
0-399
0-399
0-8
1000kg
200*132*152



★Multi-functional Design

With multi-functional design, it can be used for transfer printing cut pieces, especially suitable for small batch and sample making, vivid transfer effect same as bigger size drum.

 ★Teflon Coated Drum

The heating is uniform and not easy to deform. The surface of the heating plate is coated with Teflon. Teflon coated drum has the advantages of high hardness, high abrasion resistance and anti-bonding etc.

 ★Double Station Countertop

When the machine is operating, you need to adjust the fabric and sublimation paper, which can help you prevent your fingers from being pressed. It is available upon request (for double-side printing at the same time).

 ★High-density and High-temperature Resistant Silicone Pad

Good elasticity, no aging, no deformation, no peculiar smell when working at high temperature. Temperature control, time control, adjustable pressure (maximum pressure can reach 8KG/cm).

Fabric Sample For Free

If you hesitate to order this machine, maybe you can to do a sample test first. Send us your design, we will heat transfer your design with this machine, and send you the transferred textile fabric, so that you can check the quality. All of these are free!

Request a free Fabric Sample>>

Professional Features-Wide Format Flatbed Heat Press Machine

With electronic digital constant temperature control technology. It has high accuracy(±2℃)

Double-side worktable is adopted push and pull which is alternati worktable on heat transfer work

Heating plate thickening and uniform heatting, is not easy to deformation, and long service life

Suitable for heat transfer garment, umbrellas, banner, shoes, hats, toys and artwork



Applications

Apparel

- Lycra materials-cycling

- Polyamide-Swim&Surfwear

- 100% polyester(stretch)-cycling, running, ice hockey wear

- Sports and functional textiles



Home Internal

Curtain, Blind, Cushion, Table Cover, Towel Cleaner, etc.



Advertisement

Flags, Banners, Felts, Gaming tables, Home Textiles



Hard Substrates

Ceramics, Metal plates, Skis, Snowboards, Mug, Cup

Company story
SMT factory located in Dongguan,Qingdao industry city,our printing center in Shenzhen,we focus on manufacturing printing machine industry for more than 13+ years experience .
About 6000 square meters workshop and more than 15 professional technicians.we have our own R&D team and 20 employee sales team,lifelong technical support after-sales service including all kind of DTG,DTF,oval screen,UV hybrid printer ,OEM and ODM are welcome.
we developed dtg,dtf printer,hybrid screen printer & UV printers,heat press,sublimation machine 40 models, Relying on high quality product ,advanced design concept ,well - known expert team , Rich professional market experience & good services , SMT wins customers all around the world,
We Provide successful agent market support system in Asia , UK , US , Middle east country with after sales service .
Welcome to become our partner .
Why SMT PRINT---Our duty&advantages
Pre sale free samples offer&after sale Lifelong service support.
1.powerful factory,Fast & professional response,offer various value solutions.
2.Safety, Environmental, auto digital control system.
3.support video guidance,convenient for you to know our qualifications.
4.provide a variety of packaging schemes.
5.Various ODM,OEM capacities and meet your needs.
6.offer A variety Printing solutions, such as related machine dtf,dtg,oval screen hybrid,etc..
