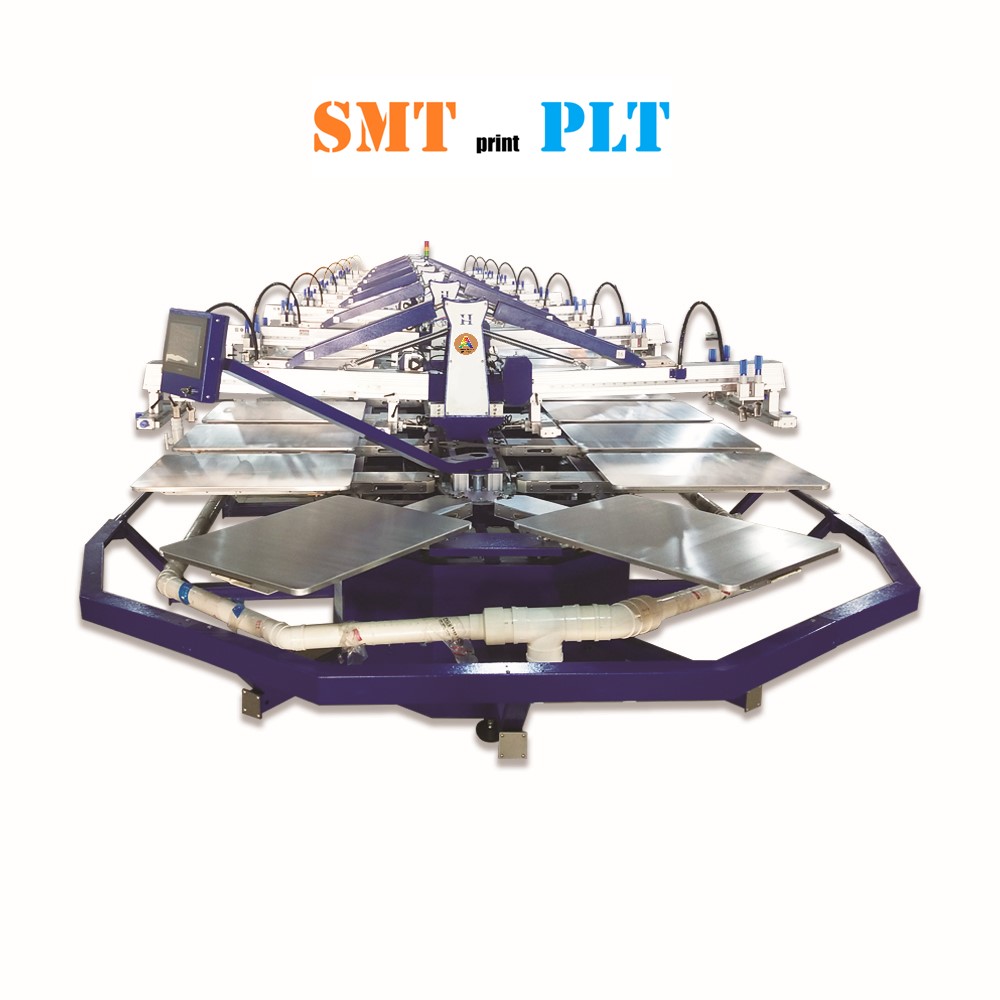

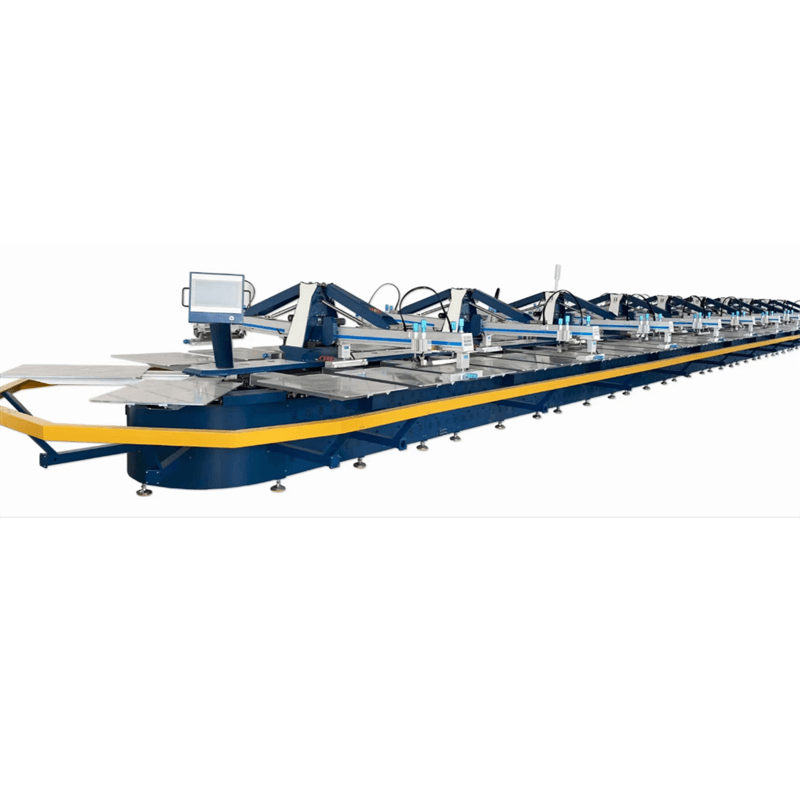

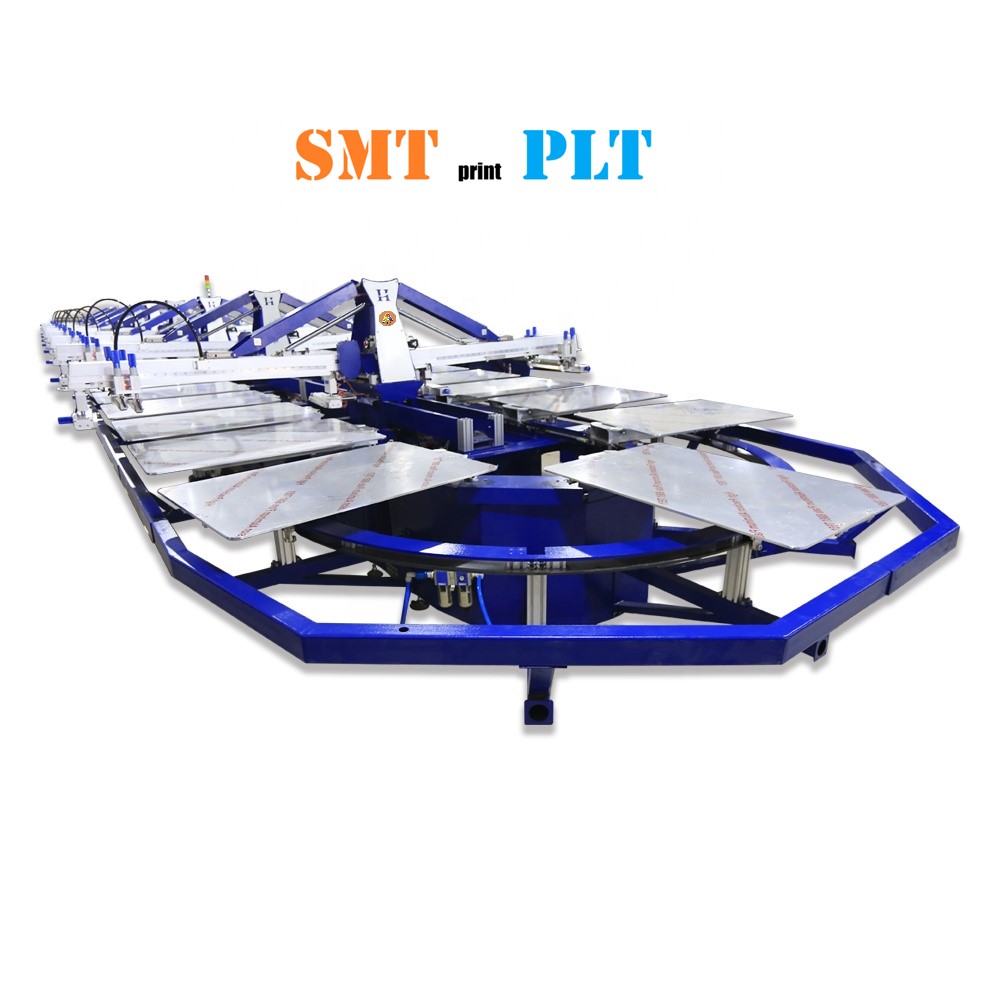

Automatic garment T-shirt oval screen printing machine
China original factory Offer from 8 colors to 32colors screen arms for Oval Screen Printing Machine
Easy work with digital printing station
Offer screen Flock solutions
A one stop printing industry scheme expert machine
Match different level needs printing process factory
Screen Printing specification
|
Full Servo Oval Automatic Screen Printing Machine |
|||||||||
|
Model |
4S |
6S |
8S |
10S |
12S |
14S |
16S |
18S |
20S |
|
Plate Quantities (Pieces) |
16 |
22 |
28 |
34 |
40 |
46 |
52 |
58 |
64 |
|
Printing Number (Color) |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
|
Printing Size (cm) |
60*76（platen size 63*86） |
||||||||
|
Max Frame (cm) |
60*86cm/70*105cm/95*130cm |
||||||||
|
Machine length (cm) |
682 |
888 |
1094 |
1300 |
1506 |
1712 |
1918 |
2124 |
2330 |
|
Machine width (cm) |
316 |
||||||||
|
Machine Height (cm) |
162 |
||||||||
|
Machine weight (kg) |
2200 |
2700 |
3200 |
3700 |
4200 |
4700 |
5200 |
5700 |
6200 |
|
Air consumption(m3/m) |
0.1 |
0.15 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
0.45 |
0.5 |
|
Air pressure Specification |
0.6Mpa/0.8Mpa |
||||||||
|
Print Head Driver |
Single Printing Head Servo Motor 400W |
||||||||
|
Total power Consumption (kw) |
2.6 |
3.4 |
4.2 |
5 |
5.8 |
6.6 |
7.4 |
8.2 |
9 |
|
Power supply parameters |
380V,50HZ,Three Phase Four Wires |
||||||||
|
Capacity |
800PCS/hour |
||||||||
the SMT PRINT OVAL supports this priority through its innovative design with safety built in to every step of the printing process.
The equipment features safeguards, such as sensors on the clamshells and cabinets,safety bars.and a multitude of other safety components within each piece of the equipment.
There are multiple safety switches integrated throughout SMT PRINT OVAL. Pallet detection and safety bars prevent accidental cycling.
SMT PRINT OVAL is equipped with a quick-release pallet system.
This allows for rapid and secure change to standard,small,sleeve,or any other type of SMT PRINT OVAL pallet.
Having the flexibility to run different garments,materials,and sizes all in a batch production setting generates huge efficiencies.
The smart press is also hot-swappable for offline maintenance and maximum efficiency
SMT PRINT OVAL’s smart cure system allows garments to be cured as quickly as possible by ramping up temperature and reducing time.
This patented “dot-for-dot”application method digitally “jets” the foundation in the exact size and shape of the design area,eliminating corrosion,over-spray,pre-treat box and staining.
The smart cure and smart press stations.allow for automated equipment settings for each garment type and size.
SMT PRINT OVAL is equipped with a head height sensor, measuring every single garment as it passes through.
The heads are automatically adjusted for optimal print quality while protecting production from head strikes.
So if you’re one of those companies that are trying to decide,you know am I going to replace my silk screening machines- or try to go digital or one of the two,you’ve got a machine that will do it both. And without having to buy a separate machine for each one of your functions.
The SMT PRINT OVAL is your one stand-alone machine with a entire operating system that comes along with it that will do it all.

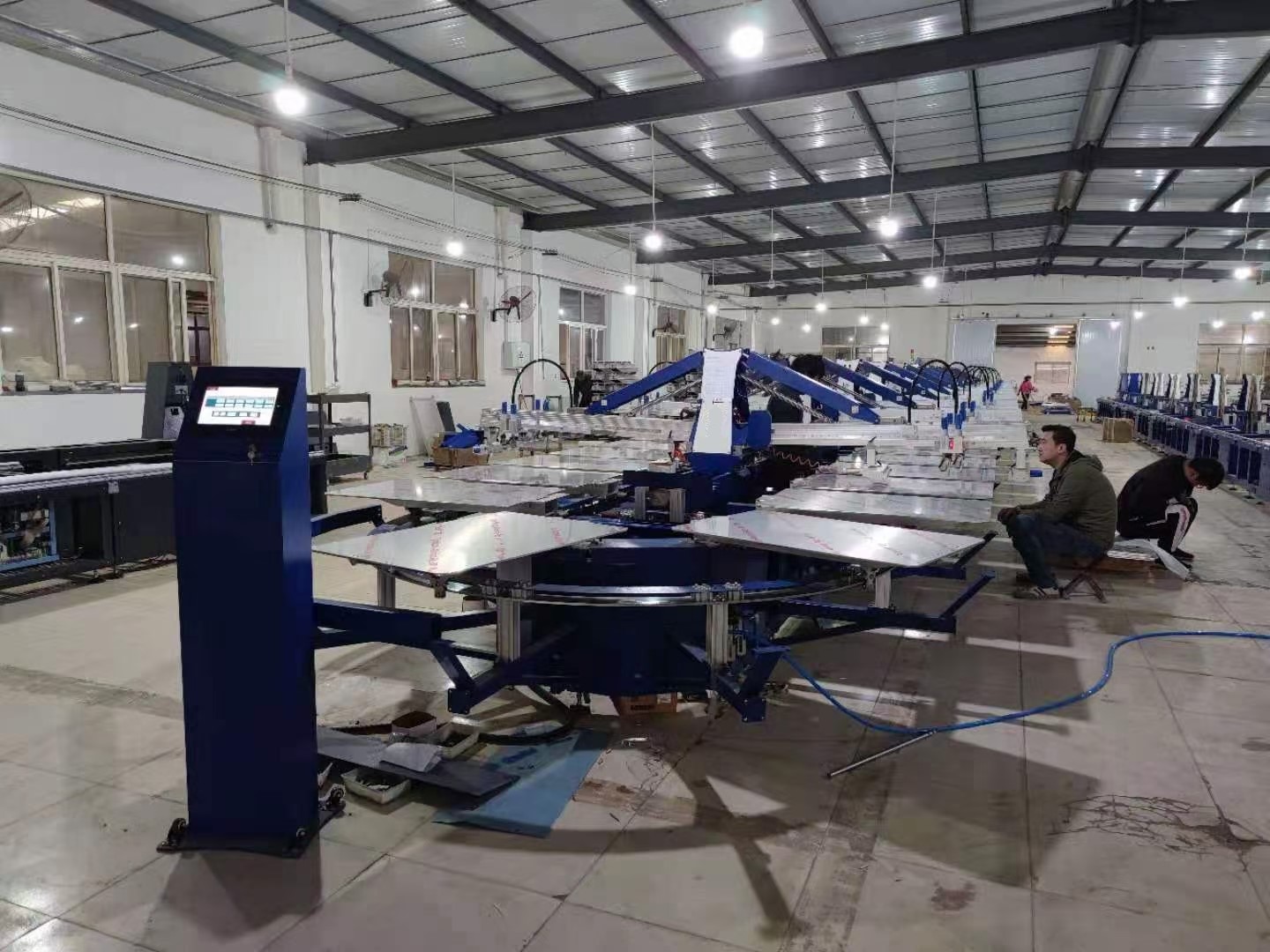

Powerful factory
BUY 1 GET More !
Buy any SMT printer machine, you will get the highest quality related starter kit printing supplies for free.
Oval screen Starter Kit Includes: high quality screen paste solutions
Special color ink formular offer.
SMT screen printer environment settings guidance
SMT screen printer video Operation guidance
