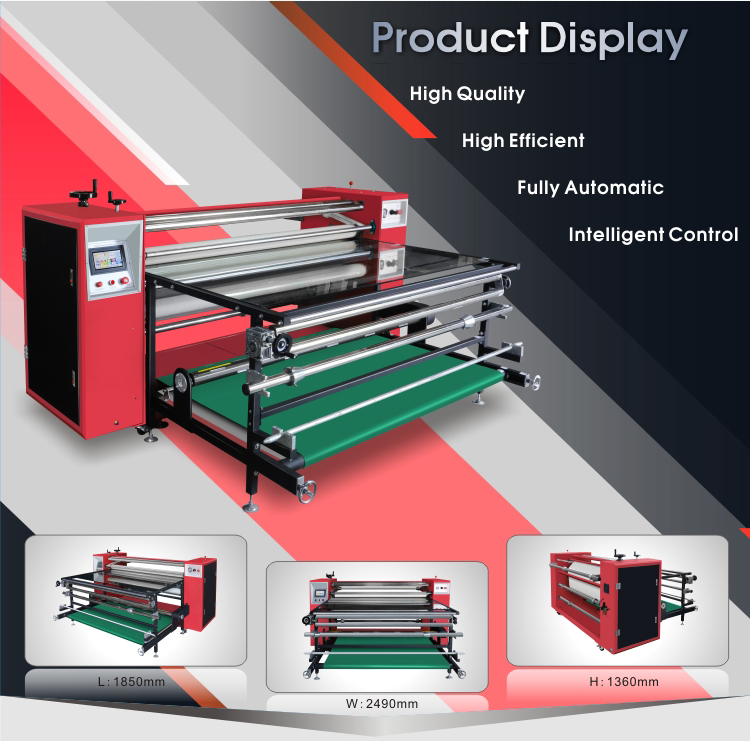

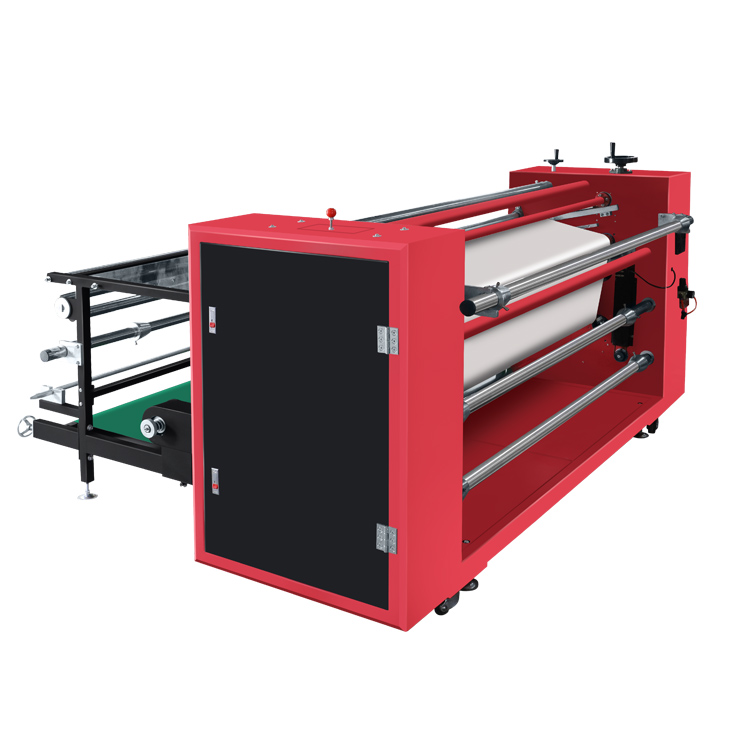

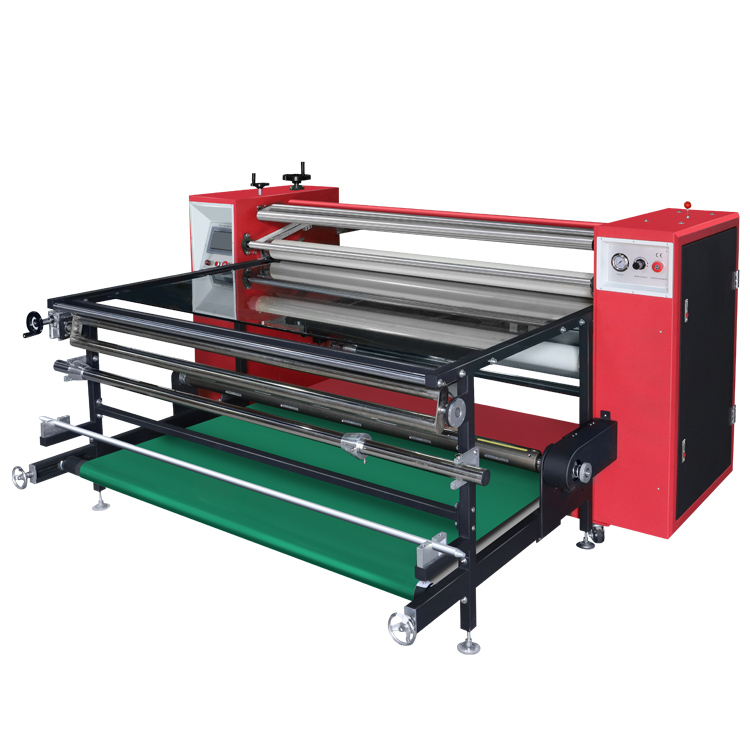

Rotary Heat Press Machine
The rotary heat transfer machine is ideal for garments, apparel, soft signage, mouse pads, carpets, flags, tents, blankets, curtains, and polyester fabric in rolls or pieces.
A double-layer drum solution is ideally designed for piece-by-piece or roll-to-roll transfers up to 190 cm in width, including polyester fabric, soft signage, custom clothing, and larger-scale personalized dye sublimation items.
Warranty: 24 months (Ink system, printheads and ink capping are not covered)
International Shipping: DHL,FedEX,By Air,By Sea
Technical Specifications
|
Drum Diameter |
Transfer Width |
Voltage |
Adjustable Power |
Transfer Speed |
|
200mm(8″) |
1100mm(43″) |
Single Phase, 220V |
5kw |
up to 0.8m/min (2.8ft/min) |
|
1600mm(63″) |
3 Phase, 220V |
7kw |
||
|
320mm |
1700mm |
220 volts 3-phase or 380 volts 3-phase. |
40.8KW |
120-130m/hr(472”/hr-510”/hr) |
|
1900M |
48KW |
|||
|
42cm or 16.5”, Double Layer |
1600mm(63″) |
3 phase, 220V/ 380V / 480V |
30.6KW |
1.3m/min(4.3ft) -2.6m/min(8.5ft) |
|
1800mm(71″) |
36KW |
|||
|
2500mm(98″) |
46.8KW |
|||
|
3100mm(122″) |
57.6KW |
|||
|
50cm or 20”, Double Layer |
1700mm(70″) |
3 phase, 220V/ 380V / 480V |
40.8KW |
1.6m/min(5.2ft)-3m/min(9.8ft) |
|
1900mm(75″) |
48KW |
|||
|
60cm or 24”, Double Layer |
1600mm(63″) |
3 phase, 220V/ 380V / 480V |
45.9KW |
1.6m/min(5.2ft) -4.2m/min(14ft) |
|
1800mm(71″) |
54KW |
|||
|
2500mm(98″) |
70.2KW |
|||
|
3100mm(122″) |
80.6KW |
|||
|
80cm or 31.4”, Double Layer |
2100mm(83″) |
3 phase, 220V/ 380V / 480V |
75.6KW |
3.3m/min(10ft) -17m/min(52ft) |
|
2500mm(98″) |
90KW |
|||
|
3500mm(138″) |
126KW |
Advantages of SMT PRINT Rotary Heat Press
SMT PRINT Oil Filled The Rotary Heat Press has been specifically designed to meet the increasing demand for cut-part digital printing. This method is widely used to print sports and team apparel.
Machine Details
1. Check every part of the machine regularly to make sure it can work normally.
2. Be careful when pressing the emergency stop button. Often, the use of this button is harmful to the chain, towline, and belt.
3. Each time before you start operating, remember that the machine must be refueled according to the rules.
4. The gas source processor’s roller heat press machine should close the gas twice a day: once for the aerosol oil, adjusted to 4-5 drops per minute, and once for the gas.
5. Joint head: butter drops (a week or time, 10-20 g), oil drops (1-2 drops, 3 days or times).
6. Sometimes the optical axis will drop oil twice a week. The best method to avoid this situation is to use good-quality media.
Applications
Apparel
- Lycra materials-cycling
- Polyamide-Swim&Surfwear
- 100% polyester(stretch)-cycling, running, ice hockey wear
- Sports and functional textiles
Home Internal
Curtain, Blind, Cushion, Table Cover, Towel Cleaner, etc.
Advertisement
Flags, Banners, Felts, Gaming tables, Home Textiles
Hard Substrates
Ceramics, Metal plates, Skis, Snowboards, Mug, Cup
