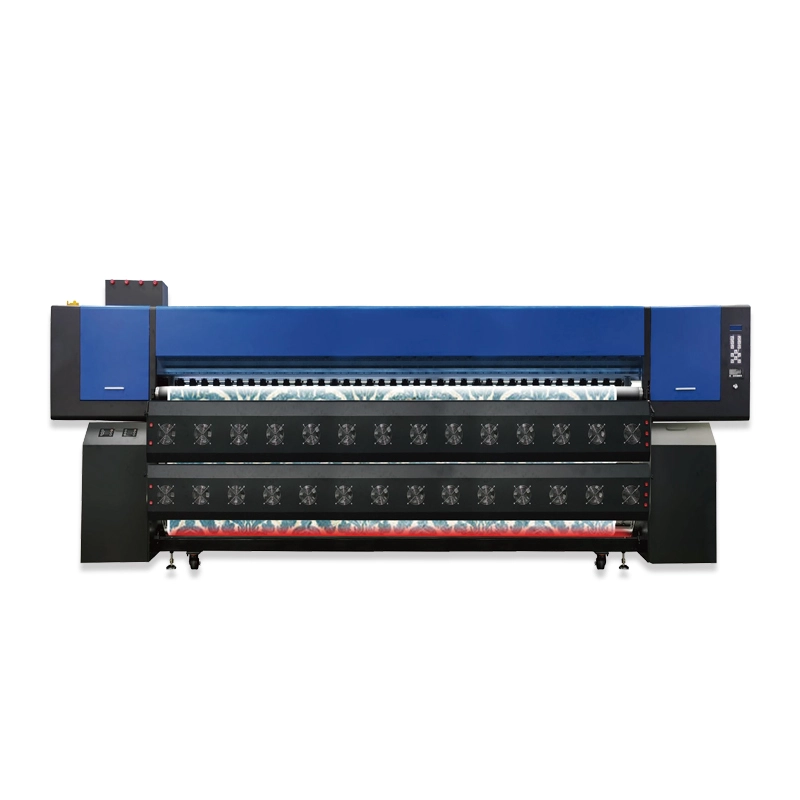

SMT-1.8-3.2m Industrial Sublimation Printer
SMT-1.8-3.2TX dye-sublimation printer offers exceptional digital printing with high quality, speed, and functionality. Most widely applied for most digital sublimation transfer printing. which is superior quality for digital printing for sportswear, blankets, curtains, wider wall covers, tents, etc.
Print Head:4-6-8-15pcs i3200 Print Heads Max Print Size: 1800mm-3200mm Printing Width. Max Print Speed: 120-240 sqm/h
Read More >>
Warranty: 24 months (Ink system, printheads and ink capping are not covered)
International Shipping: DHL,FedEx,By Air,By Sea
Technical Specifications
|
Model |
|
SMT-1800-3200TX |
SMT-TX |
|
Print Head |
|
4-15pcs Epson I3200-A1 Print Heads |
|
|
Droplet Size |
|
3.5pl |
|
|
Printing Speed |
|
1pass -（480-560）㎡/h |
1pass -600㎡/h |
|
Printing Ink |
Ink Type |
Water-based/Dispersed /dye Sublimation Ink |
|
|
Color |
C M Y BK |
||
|
Ink Supply |
Siphon |
||
|
Print Media |
|
Dye Sublimation Paper |
|
|
Printing Width |
|
1800-3200mm |
2550mm |
|
Media Loading & Take-Up |
|
Automatic Air Expansion Shafts System |
|
|
Dryer Structure |
|
External Automatic Air Shafts/ Heat Integrated Dryer |
|
|
Moisturizing |
|
Automatic Cleaning And Moisturizing Integrated Unit |
|
|
Rip Software |
|
Ultraprint as standard and other softwares optional |
|
|
File Format Supported |
|
JPG/ TIFF/ PDF, etc. |
|
|
Computer |
Operating System |
Win7 64 bit/win10 64 bit |
|
|
Configuration |
Handware Requirements |
CPU: i7 Processor (9 or After); Hard Disk >500G(Solid State Hard Disk); Running Memory 16G; Monitor ATI 4G Memory; Branded Mainboard (BYHX,HANSON,ASUS, Gigabyte) |
|
|
Transmission Interface |
USB3.0 |
||
|
Input Voltage |
AC 220 V ± 5%, 16A, 50 HZ± 1 |
||
|
Power requirement |
Printer |
1500W-3000W |
|
|
Dryer |
Maximum power 13KW-25KW |
Maximum power 20KW |
|
|
Dimensions(with stand) |
4100(L)x1250(W)x1850(H) mm |
4500(L)x1250(W)x1850(H) mm |
|
|
Package Dimensions |
|
4200(L)x1100(W)x1950(H) mm |
4600(L)x1100(W)x1950(H) mm |
|
Working Environment |
|
Temperature: 15-32 degrees, Humidity: relative humidity: 40-70 (non condensing) |
|
|
Standard Components |
|
External Automatic air/Heat integrated dryer, ink level alarm system, double air expansion shaft media loading and take-up system, automatic moisturizing and cleaning system |
|
Features of SMT-EPSON series Sublimation printer
★ 4-15PCS Original I3200 print heads, high-speed production, more durable and stable;
★Industrial printer design extends print head lifespan;
★Professional color management software, more accurate output color;
★Bold structure brings more stable long-term printing;
★Fully sealed drying system and mute fans reduce noise a lot;
★State-of-art industrial design concept, strong heavy duty body.

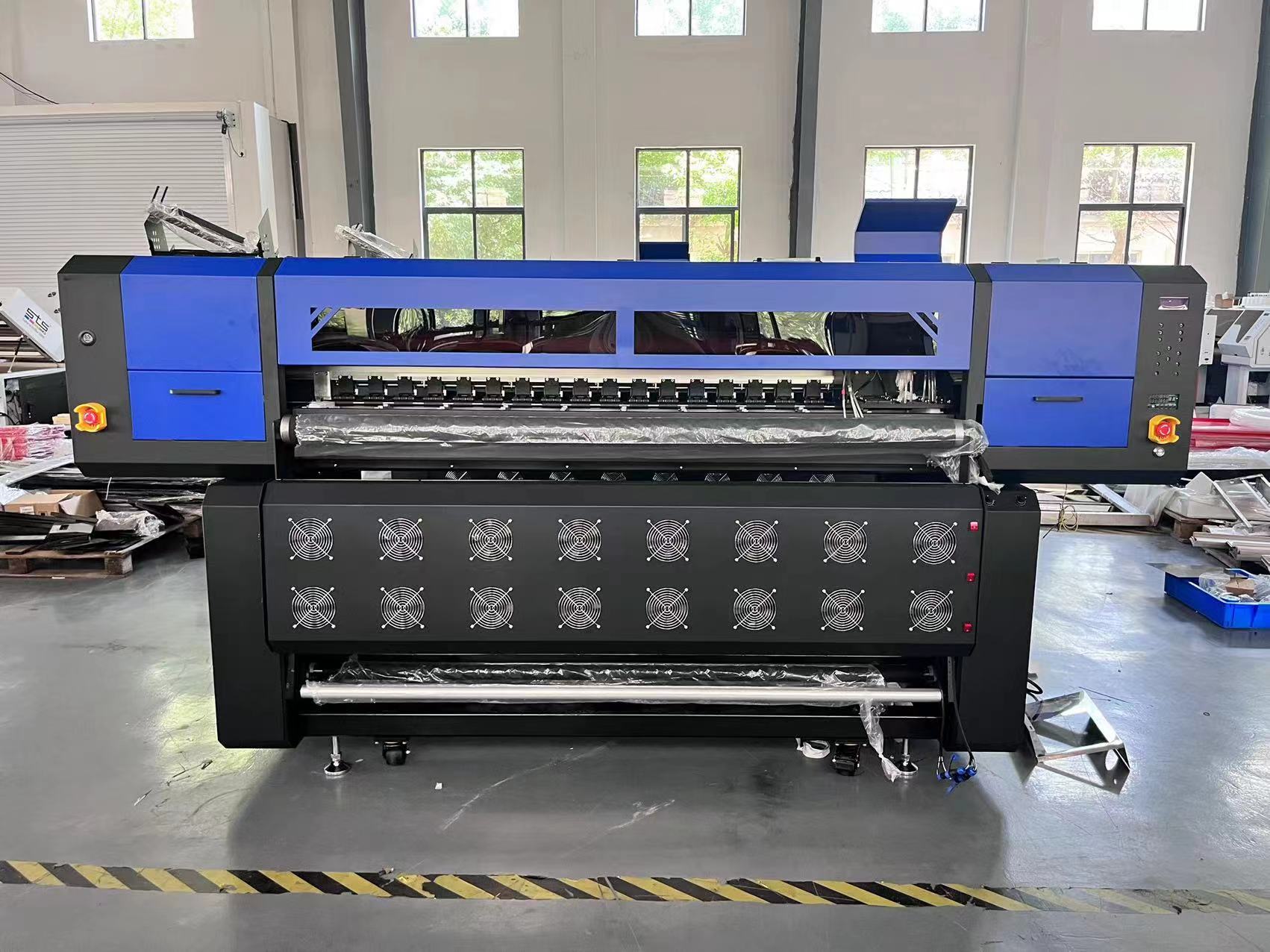

SMT-TX1800/3200 Machine Details

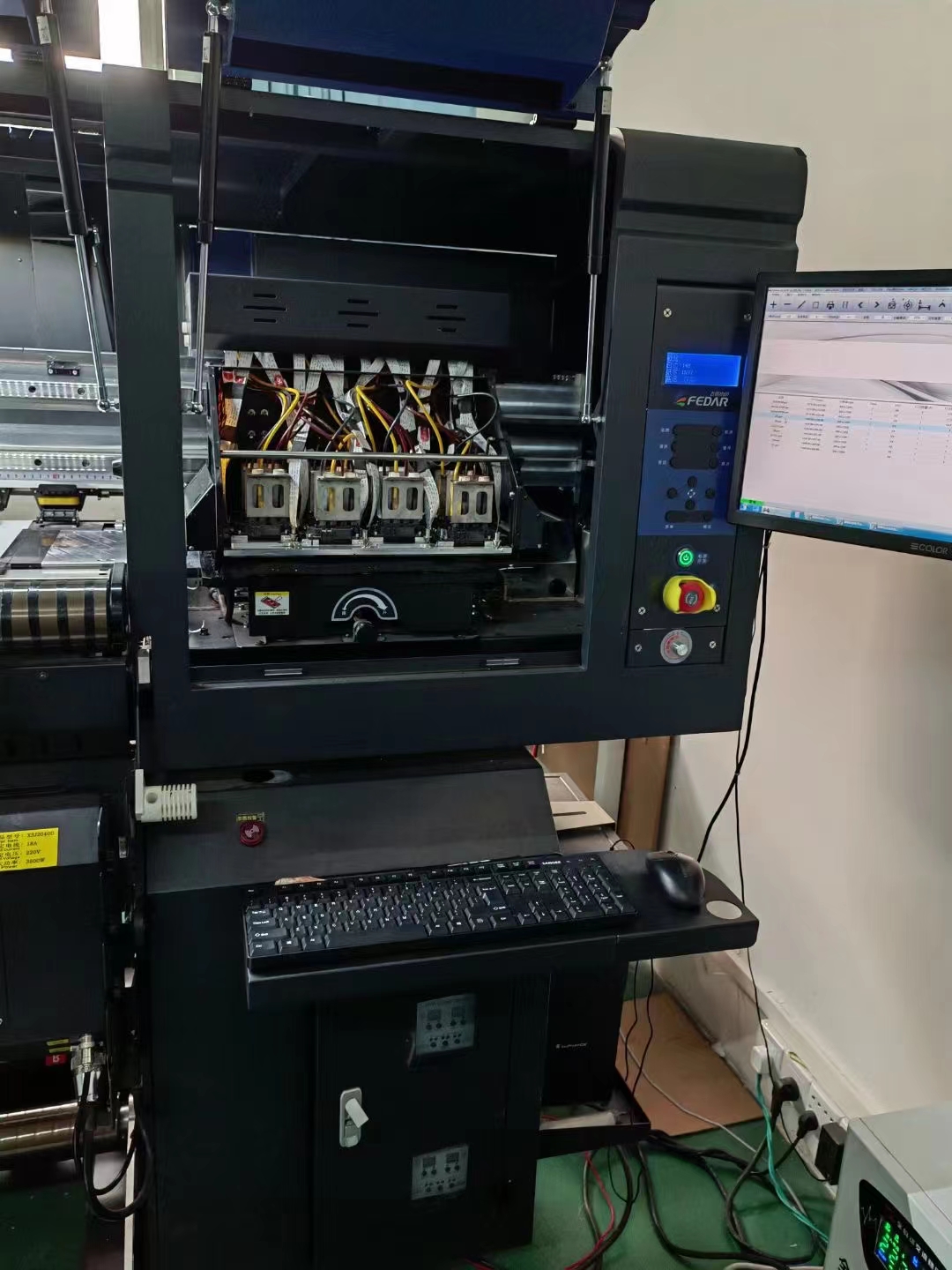

Epson and SMT sublimation printer factory have formed a close partnership. Our SMT-series printers are equipped with an advanced electrical board system, standard 4-15 PCS Epson I3200-A1 original print heads, and I3200 print heads, which have greater durability and stability due to the targeted board matching and strict quality control.
Epson introduced the I3200-A1 print head; it’s the Epson-authorized 3200 print head; this head no longer uses the decryption card 4720 head; and the print head accuracy and lifespan are 20–30% higher than the previous 4720 print head.
The ink dot of the I3200 print head is more delicate than the disassembled print head 4720. The frequency that can be reached is also faster, and the actual printing speed is faster than that of 4720.
Automatic Nozzle Cleansing And Moisturizing
The SMT sub printer is equipped with automatic cleaning and moisturizing system. The nozzle (print head) of the sub printer can be cleaned to make the printing ink smoother and protect the printer nozzle to extend its service life. And the software is free, simple to operate, easy to use.
Double THK High-Precision Mute Rail
We use double THK linear, ultra-silent Class-S guide rails with upgraded magnetic scale. These THK mute linear guide rails are imported from Japan to effectively reduce the resistance as well as noise and ensure high-precision and smooth printing during the operation of the printer.
Intelligent Air-Heat Dryer
Two-speed heaters blow out moderately warm air to dry the polyester fabric with the roller running. The sub printer has built-in infrared drying plus an external fan for double drying, and the bottom is equipped with another group of fans, which can make the pattern dry immediately and more efficiently.
Low Ink Alert
This high production sub printer is equipped with a low ink alert system. When the ink is running out to some extent, the machine will sound an alarm to remind you to add ink. This system can help provide print abort.
Large-Capacity Ink Reservoirs
Four units of 5L super large capacity ink reservoirs provide ink independently and continuously, which guarantees the long-term continuity of ink output.
High-Frequency Motor
A 400-watt independent servo motor can make the sub printer operate flexibly and efficiently by using the frequency inversion technique.
Nozzle Anti-Collision System
The theoretical method is proposed to lower bagging deformation in kitted fabric during printing to some extent, which can avoid the improper use of the nozzle and extend its service life.
Fluor Rubber Pressure Roller
A US Fluor rubber pressure roller can prevent static electricity and wrinkled fabric from flying ink, making it more accurate for the printing of large shafts and lightweight sublimation paper.
Applications
Apparel
- Lycra materials-cycling
- Polyamide-Swim&Surfwear
- 100% polyester(stretch)-cycling, running, ice hockey wear
- Sports and functional textiles
Interior Decoration
Curtain, Blind, Cushion, Table Cover, Towel Cleaner, etc.
Advertisement
Flags, Banners, Felts, Gaming tables, Home Textiles
Hard Substrates
Ceramics, Metal plates, Skis, Snowboards, Mug, Cup
Incredible Overall Value!
1 Year Warranty
Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
Sublimation Starter Kit
Starter kit pack including sublimation paper * 1, sublimation ink*4, and the user's guide.
Buy a machine and you will get $500 worth of rip software for free.
Online Technical Support
The expert team will serve you online and solve any problems you encounter for free.
Accessories
Sublimation printer accessories, including sublimation transfer inks, sublimation papers, and printer parts. SMT offers high-quality accessories for sublimation printing at affordable prices.
FAQ
Q: What is the print head?
A: It is EPSON I3200 print head.
Q: How long is the jumbo roll?
A: It is 10,000m.
Q: What is the operating system?
A: The computer operating system is win7 64bit/win10 64 bit.
Q: Can i use it under 0 degree?
A: No, temperature needs to be between 15-32 degrees.
Q: How is your quality control?
A: We have a professional quality control team that performs 100% testing before delivery.
Q: How do I order a machine from you?
A: After you confirm the order details, we will send you a pro-forma invoice for confirmation. After payment is received, we will arrange production. The shipping method is communicated to you and the final shipping product will be sent out within the agreed time.
Q: What are your payment methods?
A: T/T, D/P, D/A, Paypal, Western Union.
Q: How much tax should we pay?
A: Please get in touch with your local customs or import agent for details.
Q: Can we be the exclusive distributor of your machines? A: We look forward to working closely with you. After you have ordered multiple machines and can provide superior after-sales service, we can begin discussing a distribution relationship.
Q: What is the warranty?
A: Our machines come with a one-year warranty, except for the print head. During the warranty period, we will send some parts for replacement free of charge, and damaged parts should be returned promptly.
