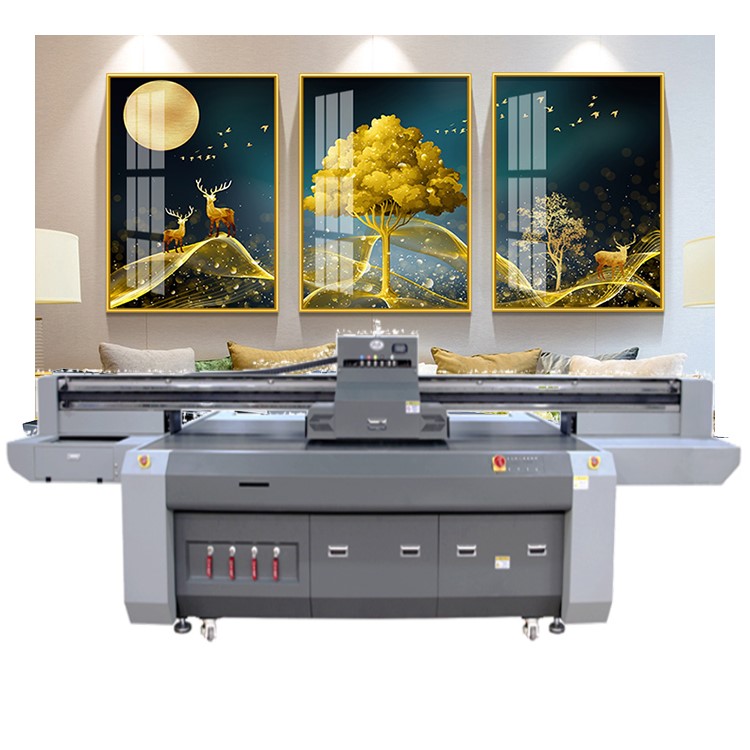

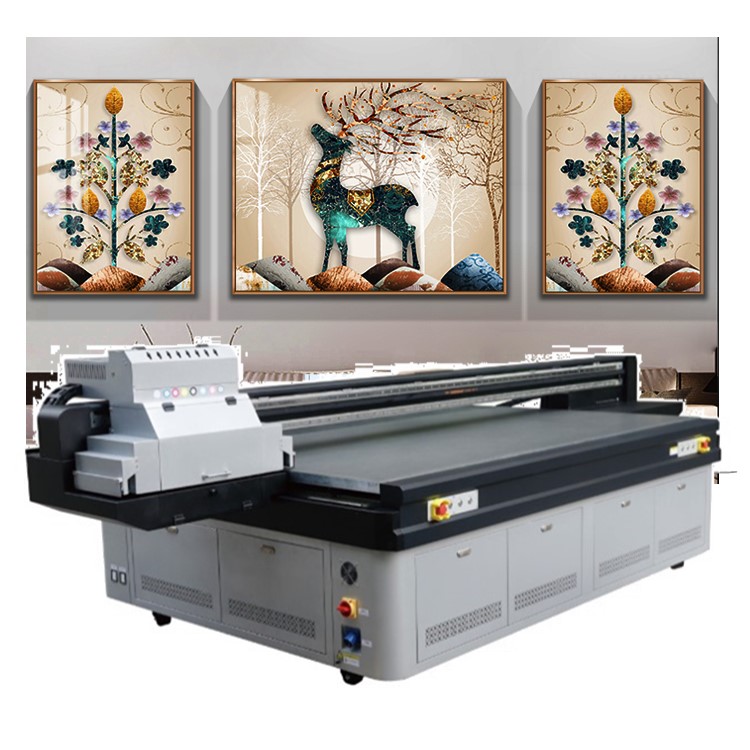

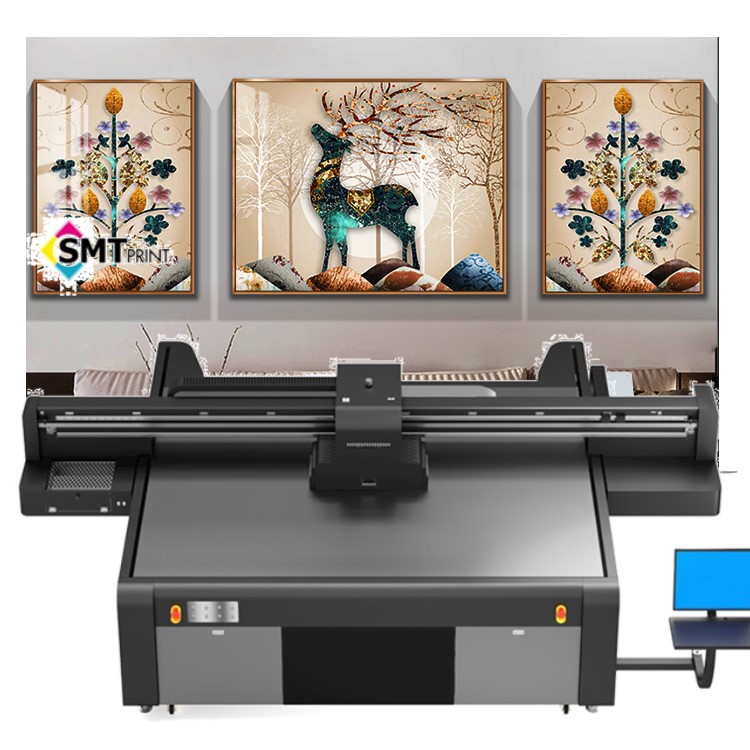

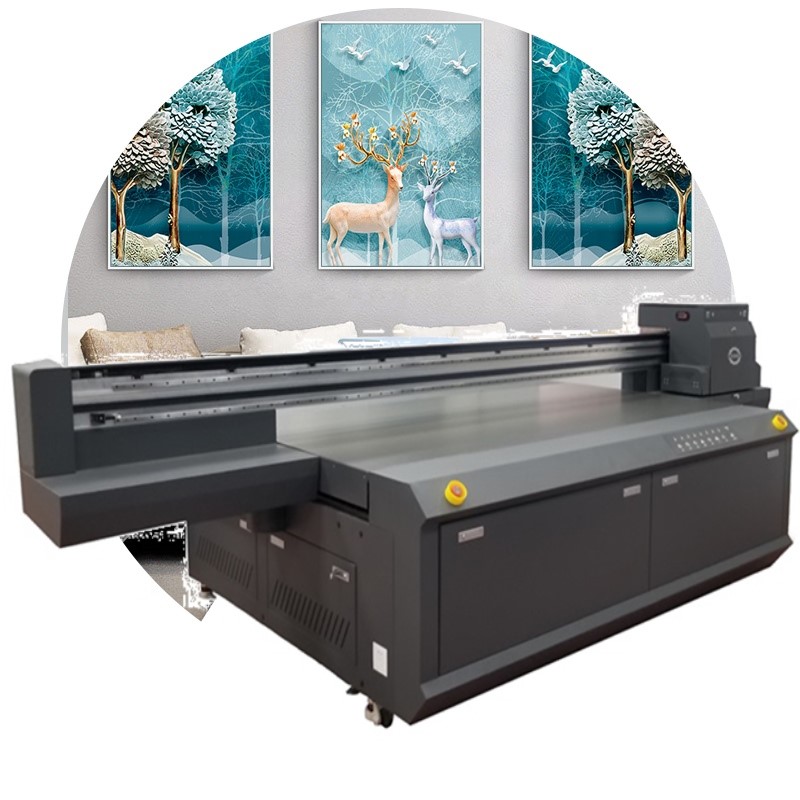

SMT UV-R2513&3200 flatbed table UV Printer
Feature:
SMT UV-R2513&3200 flatbed Printer is suitable any kind of flatbed medias directly printing.
Totally digital control system
Print Head: 4-8 pcs RICOH GEN5/GEN6 Heads, or 2-3-4 pcs EPSON-i3200/ heads options
Max Print Size: 2500*1300mm/3200MM
Max Speed: 15m2/h-35 m2/h
Ink Type: ECO-UV Curing Ink
Read More >>
Warranty: 24 months (Ink system, printheads and ink capping are not covered)
International Shipping: DHL,FedEx,By Air,By Sea
More Configuration & Quotation
Product Brochure
New system SMT-UV2513/3200-R Model As bellow：
Large heavy duty uv flatbed printer machine Specification
|
UV Flatbed Printer Specification&Standard configuration |
|
|
Max print size |
250cmx130cm |
|
Print heads |
2-3-4-8pcs of Ricoh GEN6;GEN5,Ricoh G5i,GH2220 Head; EPSON I3200 Head,Head Ooptional; |
|
Print resolution |
600-1220DPI/1220 *2880DPI |
|
Printing Mode |
4Pass16-30㎡/H 6Pass10-18㎡/H 8Pass 6-10㎡/H-----Can customize Visual Positioning print |
|
X-axis level options |
Belt transmission;/ Magnetic Levitation Linear motor driver dual servo motor(Delta,Lead Shine) driver |
|
Control board system |
Hanson board/shanghai board circuit board integrated control,dual nagative pressure control system |
|
Printing Height |
Max. height of object : 2-10-15 CM Or customize |
|
Cooling Method |
Water cycling Cooling system |
|
Ink colors |
4-6-8 color( C M Y K LC LM W Varnish )/(C M Y K W W V V ) / ( C M Y K W W W W ) |
|
Ink type |
UV LED curing ink |
|
RIP Software |
Photoshop, CorelDraw, Illustrator, RIP Software,Colorgate,Photoprint DX10 |
|
Operating system |
WIN7/10;64bits |
|
Data Interface |
high speed USB2.0-3.0 |
|
Temperature&humidity |
15-32degree,(59-90.F);68.F Or More |
|
Operating Noise |
<80db |
|
Maxmum Power |
>30A;6.5KW |
|
Power supply standards |
AC220V+-5%,50Hz/60Hz |
|
Applicable industry |
Rigid PVC board, glass, plastic, organic board, leather, rubber, special paper, metal, wood, porcelain, PVC, ABS, acrylic, aluminum, iron sheet, ceramic tile, glass, marble, granite, paperboard etc |
|
Advantage |
1, Colors, and white ink can print at the same time, also can double colors printing, double speed 2, Automatic lift platform, convenient operation, reduce the registration error 3, Machine is heavy duty,support you bulk&batch production 24h everyday,especially suitable for personalization,no MOQ. 4, Automatic cleaning and spray moisturizing device, ensure that the ink flow, to prevent the nozzle clogging 5, Any position can be set up for printing the origin, the operation step is simple to manage 6, High precision, stable performance, through the European CE certification, quality more secure,let you win more money and values back quickly. |
|
Net / Gross Weight |
1350kgs/1550kgsII 1550kgs/1650kgs |
|
Size ( L*W*H ) |
2100*4300*1300mm/2150*4400*1400mm II 5210*2810*1450mm |
New Features of UV-SMT-R2513
1, Low Investment And High Profits
The SMT PRINT UV printer is more suitable for customization. If you want to make high profits in the digital printing industry without making large deposits, you can do some customized business with SMT UV flatbed or DTF roll printers.
2, Perfect 3D Embossed Printing Effects
A cylindrical fixture is installed on the platform, which can realize the printing of cylindrical products such as thermos cups and mugs and supports printing with a diameter of 30–120 mm to meet the needs of personalized customization.
New system advantages as bellow:

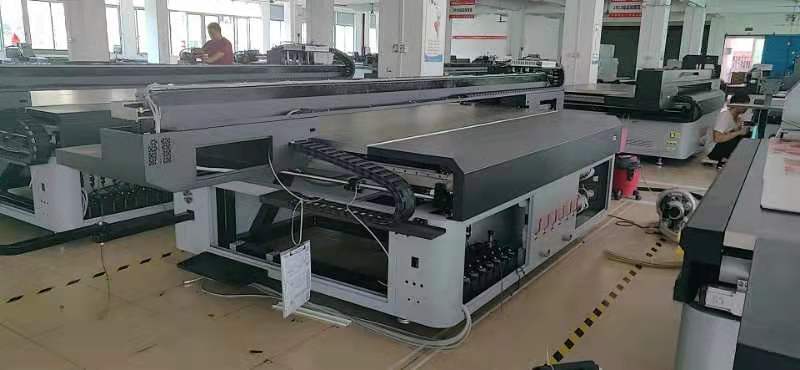

1. Gantry milling integrated frame
1.1The integrated steel frame of all models is quenched (stress relief, stable parts size) to ensure that the machine does not deform for a long time;
1.2 The whole steel frame of the frame is welded, and the five-axis planer milling machine is processed once to ensure the accuracy of the machine assembly.
1.3Double Y structure, more stable machine.
2. Beam
Use one piece non-spliced quenched steel beam. Some manufacturers will use aluminum alloy beams, which will be deformed after a few years, affecting the printing accuracy. In terms of cost, steel beams are thousands more expensive than aluminum beams.
3.Guide Rail
The X axis uses dual Japanese THK silent rails for high accuracy and low noise during printing.
-
Air suction part
The X axis uses dual Japanese THK silent rails for high accuracy and low noise during printing.
5.Servo motor Driver
X axis uses Rubhp maglev linear motor, higher stability, higher precision. Y-axis uses two Taiwan Delta servo motors, high stability.
-
Ink supply system
6.1 Configure ink liquid crystal display, ink shortage alarm, real-time understanding of ink margin, so as not to affect the printing effect due to lack of ink;
6.2 All models are equipped with 8-channel ink tube, convenient after
-
Emergency switch
machine is equipped with multiple emergency switches to ensure the safety of personnel and machines in the event of an emergency.
-
Z axis grinding screw
-
Automatic height measuring device
Equipped with automatic height measuring device, quickly set the printing height of the object.
-
Highly sensitive collision avoidance device
The new machine is equipped with high sensitivity and anti-collision to better protect the nozzle.
-
Electrical system
The circuit system design is more concise and scientific, at a glance, and effectively delays the aging time of the wire, so as to extend the service life of the machine.
-
Hard alumina platform
The use of hard alumina platform, X axis Y axis with a scale, long-term use without deformation.
-
Clear buttons
Double negative pressure system, color, white independent inking, independent control of suction motor, configuration of continuous play function.
-
墨水加热系统Ink heating system
14.1Secondary cartridge heating system, improve the temperature of secondary cartridge, maintain ink flow;
14.2Sprinkler bottom heating system, reduce the impact of low temperature on printing.
UV Flatbed Printing Working Process
Design Pattern
Use Photoshop, Illustrator, or other software to design your pattern.
Print Your Design On media surface
Adjust the printer parameters in the RIP software and use our UV flatbed printer and ink to print your pattern on the media surface.
4 Colors + White & Varnish Print Simultaneously
The varnish printing area is as smooth as a mirror without bumps and bubbles. High-quality varnish output has stronger adhesion and abrasion resistance. Colors no fade.
Applications Of flatbed UV Printer
Different customers will use UV printers to print different products. SMT PRINT UV printer is mainly used for Toys, Acrylic, Wood, Plastic, Glass, Phone Cases, Keychains, Ceramic Tiles, Metal, Packaging Bags, Luggage, Fountain Pen, Crystal Trophy, etc. What industries are UV printers used in? For example, the toy industry, advertising and signage market, home decoration, and furniture market, personalized gift market, etc.
BUY 1 GET More !
Buy any SMT PRINT UV machine, you will get the highest quality UV starter kit printing supplies for free.
Uv flatbed Starter Kit Includes: inks, standby spares
UV Ink: 1000ml*5 (c,m,y,k+w/varnish)
Rip software: Flexi Print/Maintop
SMT PRINT UV environment settings
SMT PRINT UV instructional video
