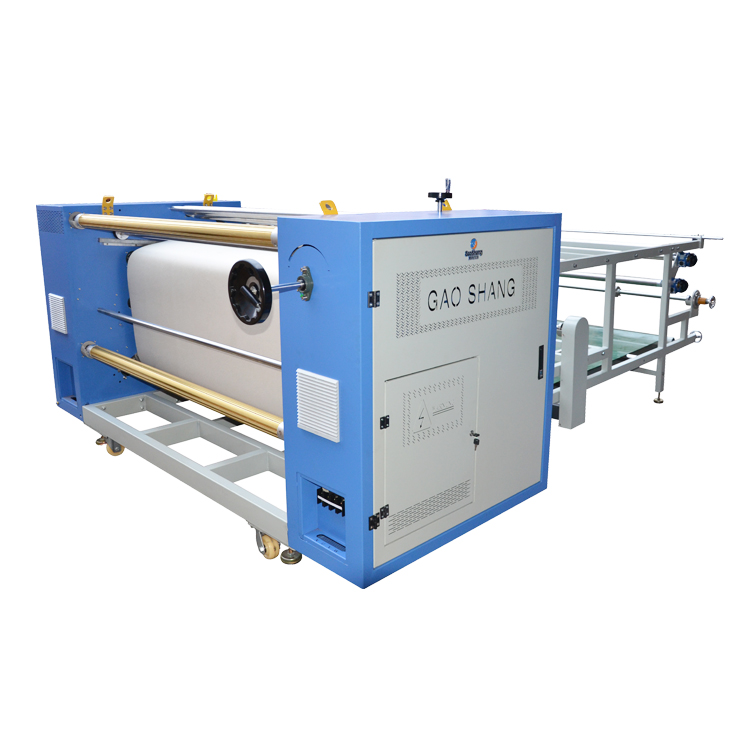

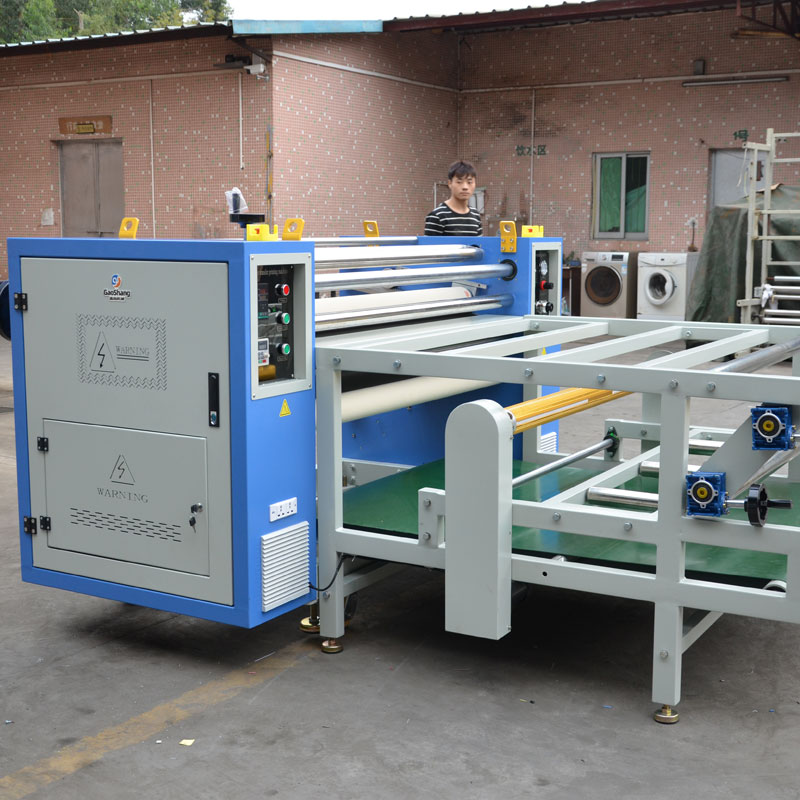

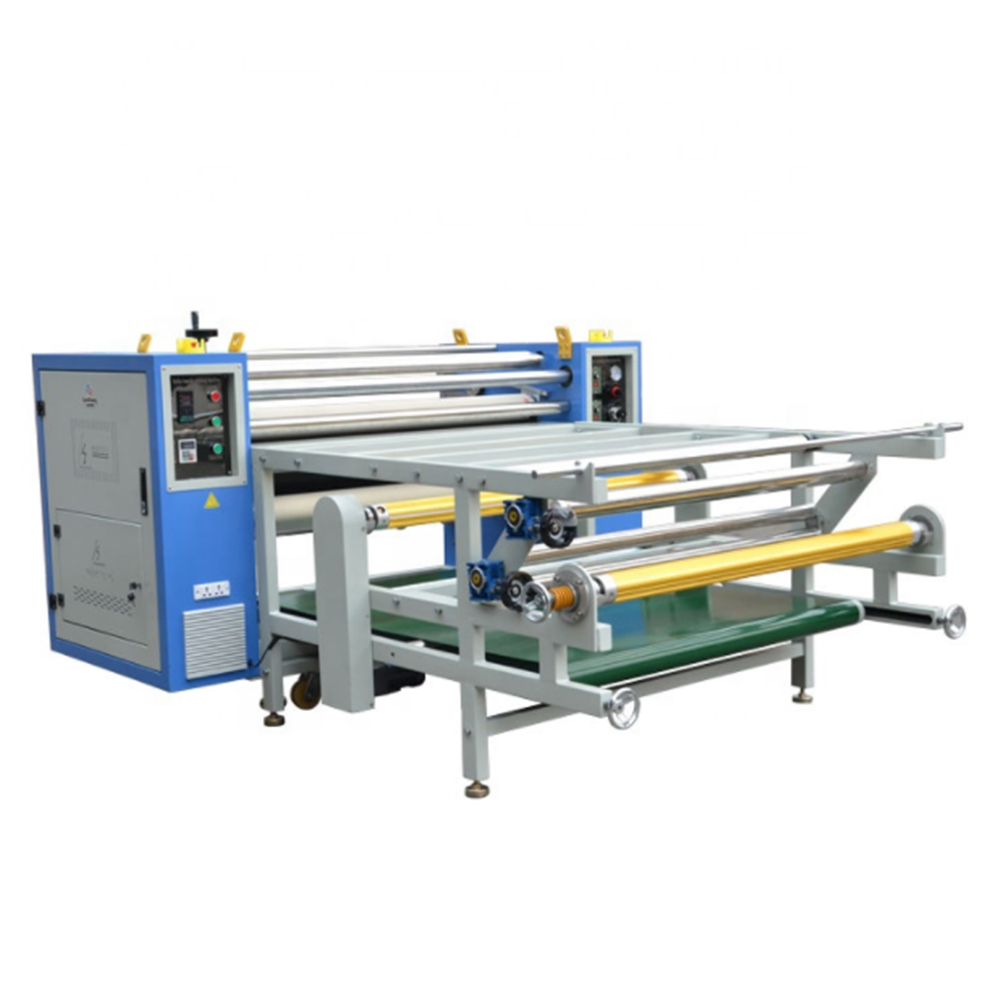

Rotary Heat Press Machine
Specially designed for piece-by-piece or roll-to-roll transfers. It can be used in polyester fabric, soft signage, custom clothing, and larger-scale personalized dye sublimation items.
Technical Highlights:
-
Double-layer Drum
-
Filing Oil Drum to 100%(saving 30% power)
-
Automatic Nomex Drum Blanket Aligment
-
Automatic Belt Tracking System
Top features:
-
Print up to 190 cm in width
-
Applied to various materials, garments, apparel, soft signage, mouse pads, carpets, flags, tents and more
-
High security performance with the unique advantage of anti-explosion through automatic valve off
-
Transger priting speed is more stable
Warranty: 24 months (Ink system, printheads and ink capping are not covered)
International Shipping: DHL,FedEx,By Air,By Sea
Technical Specifications of rotary heat press machine
|
Drum Diameter |
Transfer Width |
Voltage |
Adjustable Power |
Transfer Speed |
|
200mm(8″) |
1100mm(43″) |
Single Phase, 220V |
5kw |
up to 0.8m/min (2.8ft/min) |
|
1600mm(63″) |
3 Phase, 220V |
7kw |
||
|
320mm |
1700mm |
220 volts 3-phase or 380 volts 3-phase. |
40.8KW |
120-130m/hr(472”/hr-510”/hr) |
|
1900M |
48KW |
|||
|
42cm or 16.5”, Double Layer |
1600mm(63″) |
3 phase, 220V/ 380V / 480V |
30.6KW |
1.3m/min(4.3ft) -2.6m/min(8.5ft) |
|
1800mm(71″) |
36KW |
|||
|
2500mm(98″) |
46.8KW |
|||
|
3100mm(122″) |
57.6KW |
|||
|
50cm or 20”, Double Layer |
1700mm(70″) |
3 phase, 220V/ 380V / 480V |
40.8KW |
1.6m/min(5.2ft)-3m/min(9.8ft) |
|
1900mm(75″) |
48KW |
|||
|
60cm or 24”, Double Layer |
1600mm(63″) |
3 phase, 220V/ 380V / 480V |
45.9KW |
1.6m/min(5.2ft) -4.2m/min(14ft) |
|
1800mm(71″) |
54KW |
|||
|
2500mm(98″) |
70.2KW |
|||
|
3100mm(122″) |
80.6KW |
|||
|
80cm or 31.4”, Double Layer |
2100mm(83″) |
3 phase, 220V/ 380V / 480V |
75.6KW |
3.3m/min(10ft) -17m/min(52ft) |

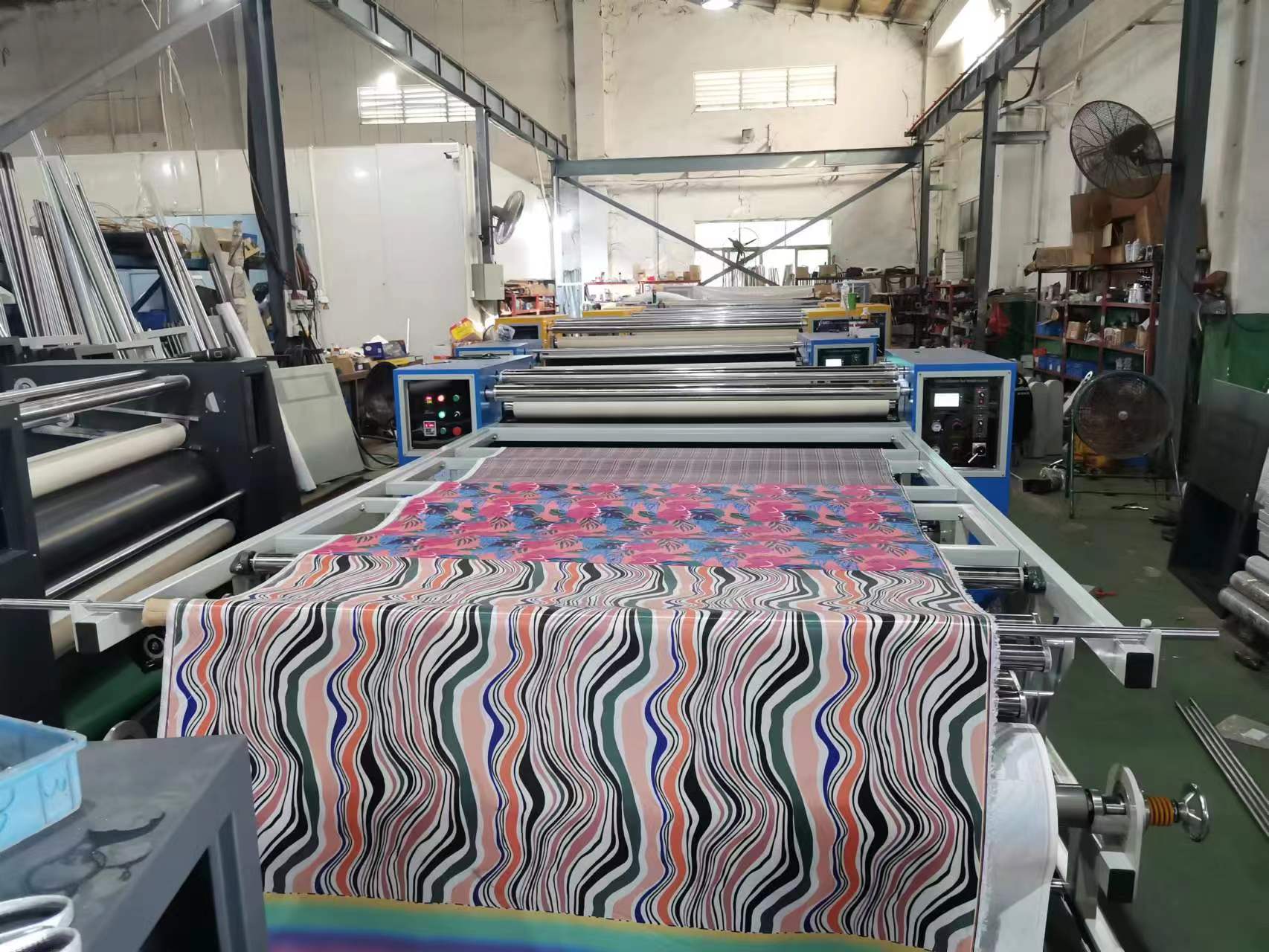

Roll-to-roll or Piece-by-piece processing
Roll-to-roll or piece-by-piece processing transfer available. Ideal for printing rolling cloth, fabric tape or umbrella cloth, and so on.
Filing Oil Drum to 100% (Saving 30% Power)
Uniform heating element temperature, heat transfer pattern of colorless difference.
75% Nome Drum Blanket Coverage
Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.
Universal Bearing
We use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.
Professional Features-Rotary Heat press Machine
1,Rotary heat oil directly at the higher heating speed, reaching 200degree. within 45 minutes.
2.external oil box which makes it convenient to add heat conduction oil, it has high security performance.
3.anti-explosion through automatic valve off.
4.blanket and belt are separated. Adopt simultaneous shaft adjustment and pressure balancing shaft to make blanket is consistent with that on the heating roller,
5.give more protection to the blanket and extend its using life.
6. use frequency conversion governor which can adjust the printing speed freely and more stable.
7. automatic collecting and releasing cloth system is optionally equipped.
8. the electric components are imported, and it separated structure from the body machine more working life, the digital controller brings higher accuracy.
9. high-tech hardware configuration. The main wall panel and rollers are all professionally reinforced.
10. the releasing-laying system attached with the body machine as a while part, lead deliver the paper or cloth exactly parallel without deviation.more labor-saving and high overall efficiency.
Product Highlight wide Application Ranges
This rotary heat transfer machine can be applied to various materials, especially ideal for garments, apparel, soft signage, mouse pads, carpets, flags, tents, blankets, curtains, and polyester fabric.
Apparel
- Lycra materials-cycling
- Polyamide-Swim&Surfwear
- 100% polyester(stretch)-cycling, running, ice hockey wear
- Sports and functional textiles
Home Internal
Curtain, Blind, Cushion, Table Cover, Towel Cleaner, etc.
Advertisement
Flags, Banners, Felts, Gaming tables, Home Textiles
Hard Substrates
Ceramics, Metal plates, Skis, Snowboards, Mug, Cup
