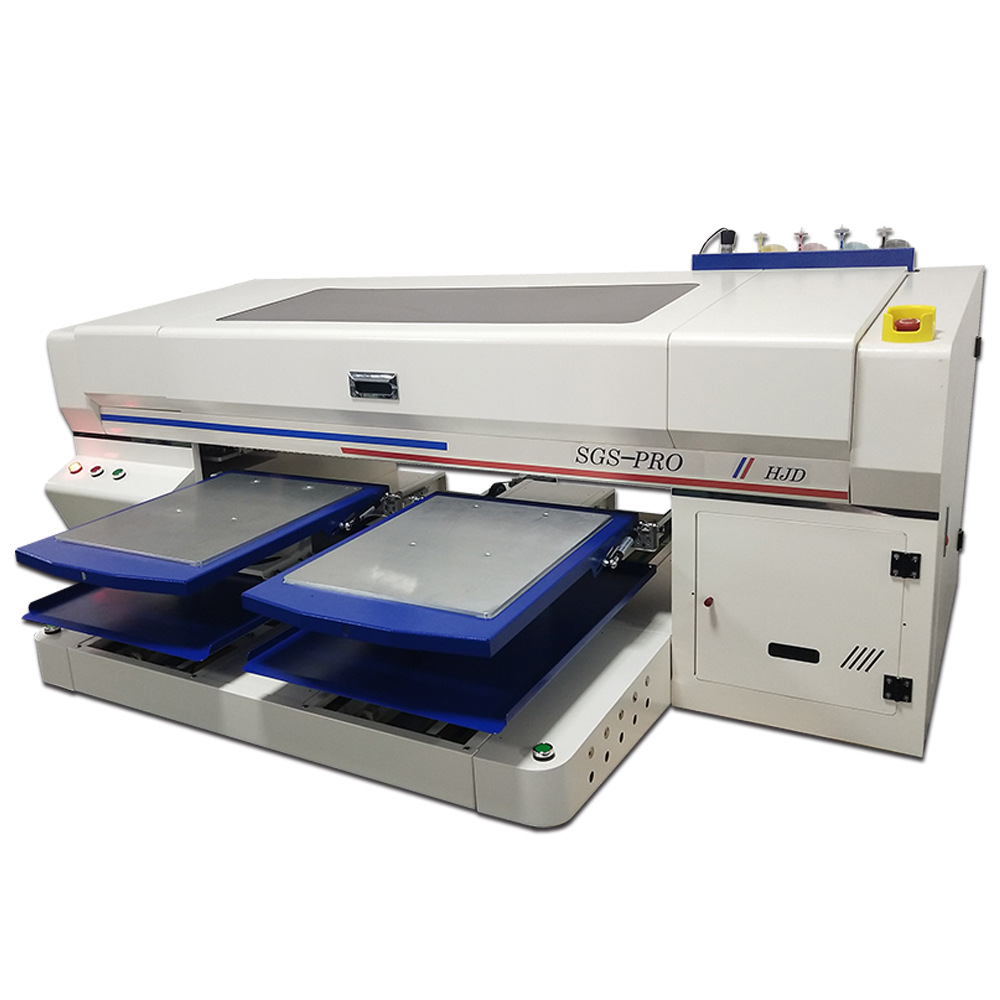

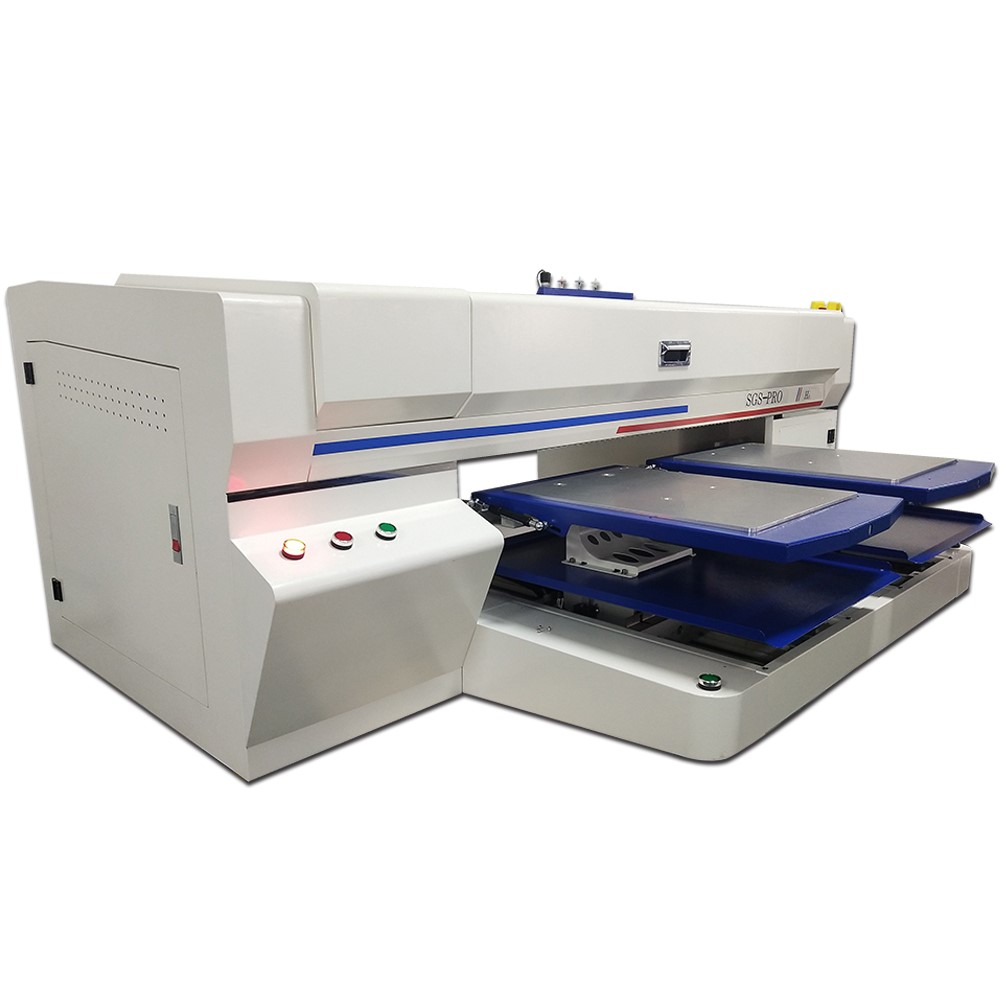

DTG-M2 Double Station Direct To Garment Printer
Rated 5.00 out of 5 based on 1customer rating
(1 customer review)
Double station printer, faster and more efficient to accept large orders. High printing effect, stable printing, more reduce ink consumption.
Technical Highlights:
Print Head: dual Epson I3200 print heads.
Print Size: dual platens of 40*50cm .or custom
Print speed:20-35seconds/pcs; per day capacity 500-700pcs
Ink Type: C, M, Y, K+W./ORGB
Top Features:
Get more >>
Two to Four Epson i3200 heads heavy duty DTG direct to garment M2 multi-purpose printer
DTG M2 station printer machine Specification
|
SMT-DTG Printer
|
Direct to garment printer-SPECIFICATION
|
|
Epsn heads 2-4 pcs,4720/i3200
|
width40*length50cm dual platform
|
|
Print resolution
|
DPI 360*720*1080*1440
|
|
print mode
|
RIIN/MT software Standard precision of 4-8pass
|
|
print speed 2heads
|
20-35seconds,A4 Format done,96-192pcs A4size/H
|
|
Printing Height
|
MAX media thickness : 6-8 CM
|
|
Ink colors
|
6-12 Color CMYKMC+6W/4-8 Color (CMYK+W)
|
|
print weight
|
non destructive weight 50KG
|
|
Net / Gross Weight
|
250-400KG
|
|
Size ( L*W*H )
|
1900*1400*800 mm
|
|
Package ( L*W*H )
|
2000*1480*1000mm
|
|

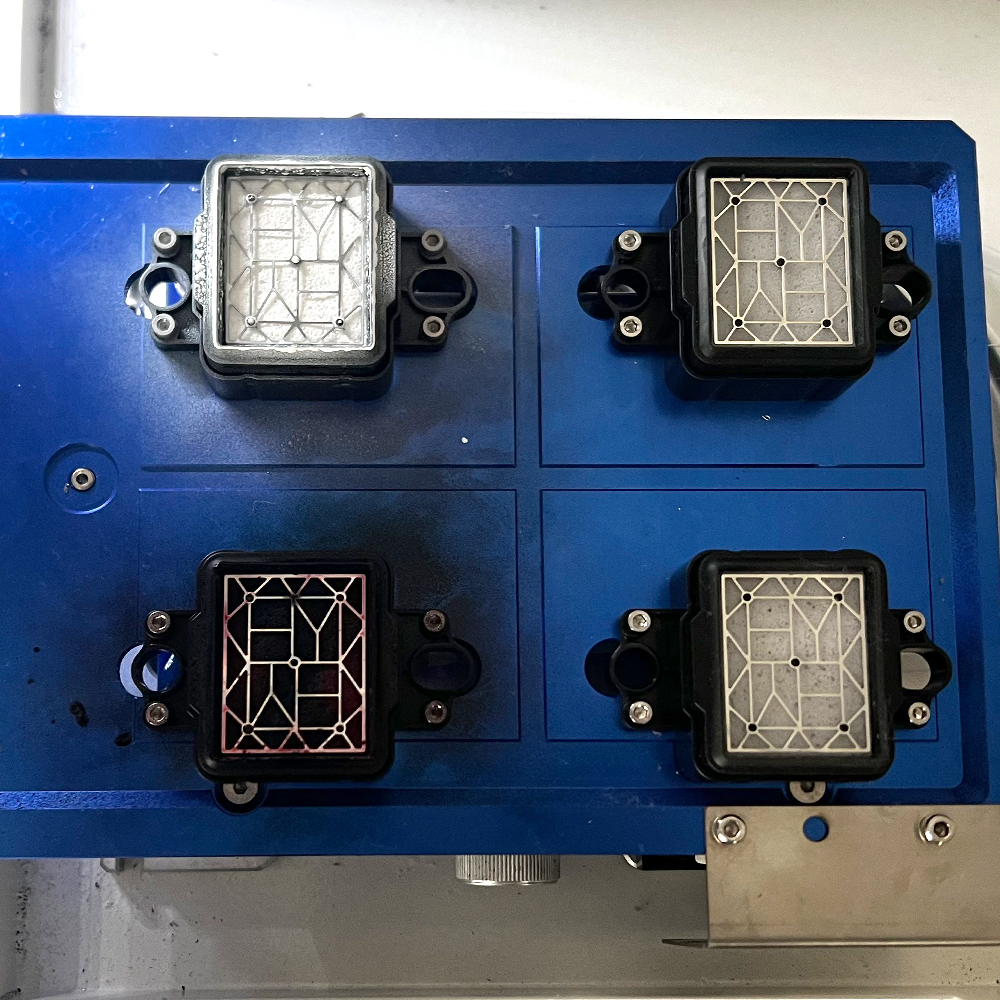

Print head daily maintainence
|
Auto ink wipping,scraping ,moisturizing,cleaning system,
|
|
NOTES: All height of plate can customize.
|
Head :EPSN 4720/i3200 ; 2-4 pcs =CMYK+W
|
Features of SMT-DTG-M2 printer
Layout your T-shirt printing business and go digital!

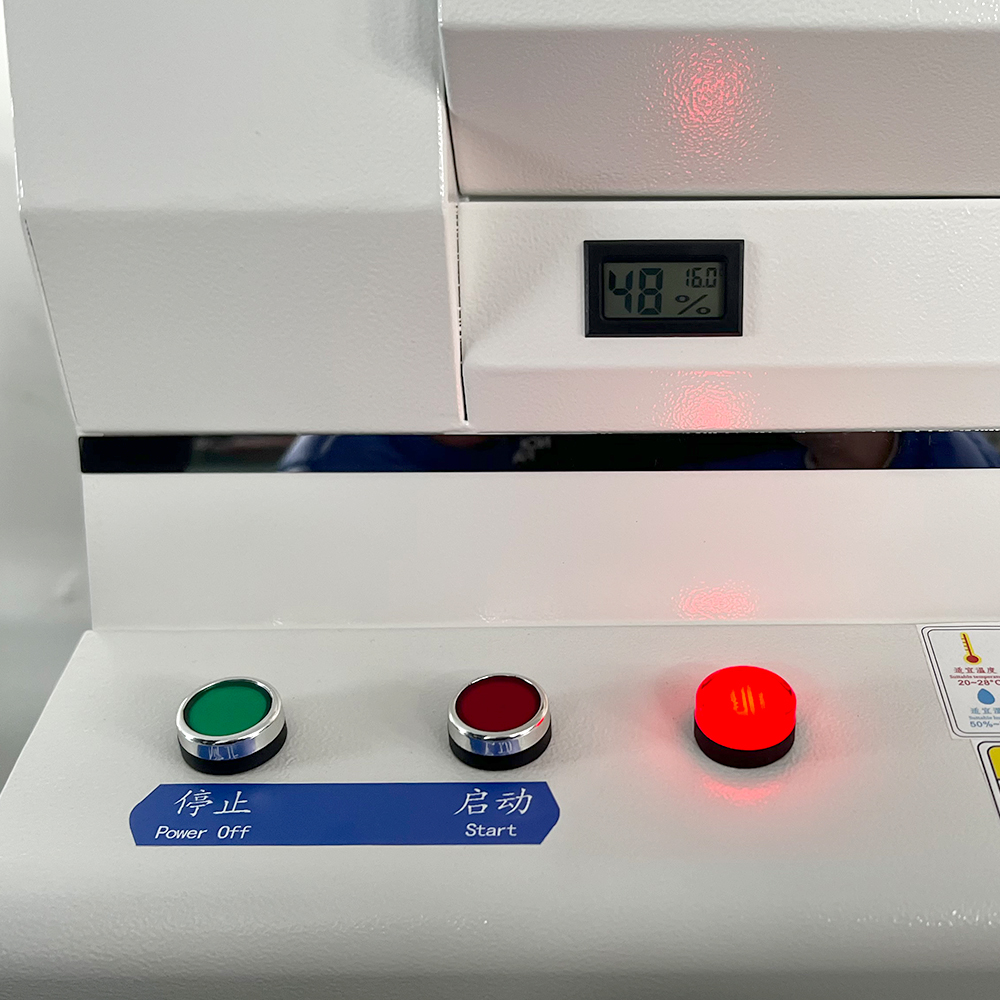

Super Fast boot
Digital control system Fast boot in 3 minutes, get to work quickly and reduce waiting time,all to save money for your company.

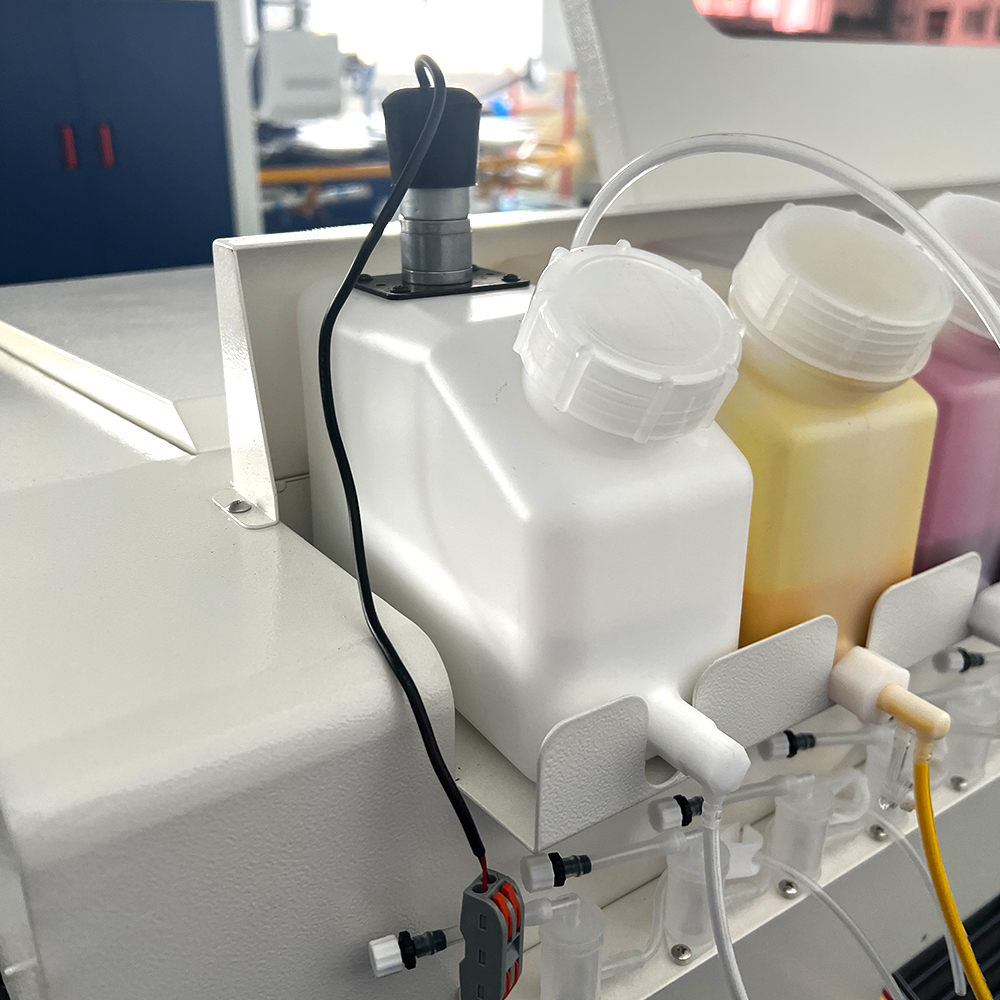

White Ink Circulation & Filtration System
Advanced white ink circulation and filtration systems prevent the white ink from solidifying, causing the nozzle to be blocked.
Smart Alert Cartridge
Using environmentally friendly textile paint ink, no odor, waterproof and sunscreen, wear-resistant, non-fading
Shortest Time from File to Finished Goods via super heart control system
It offers unique features and systems that make it more cost-effective and reduce or eliminate downtime that results in lost business.
FEATURE

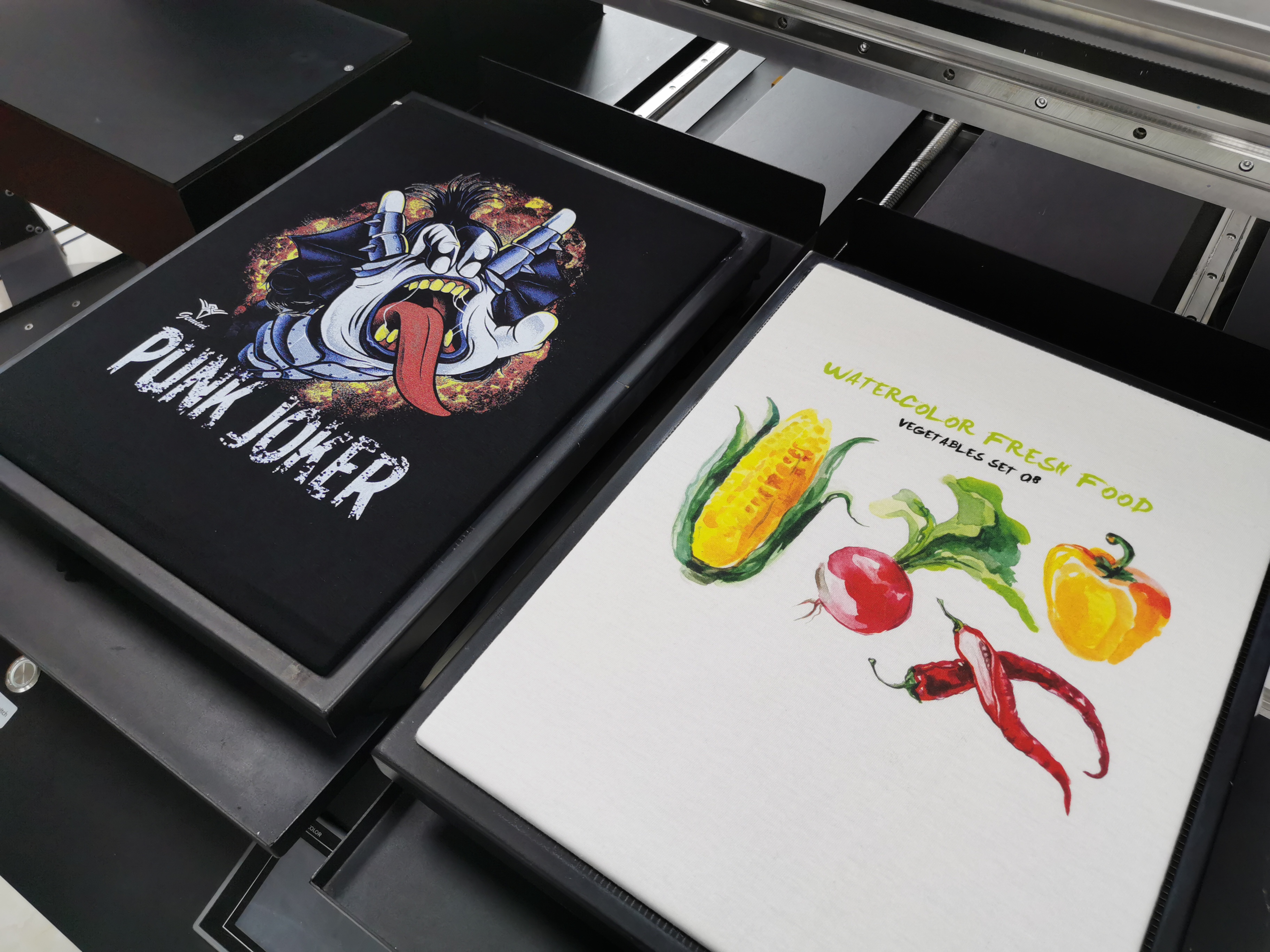

The double-station design can print and lay fabrics to prepare for the next garment. The operation is simple and saves time and cost for production. Double-station alternate printing, which greatly saves printing time, and self-contained two-way printing also doubles the printing efficiency.
Improve the working frequency and range of the white ink circulation pump to reduce the clogging of the white ink.
For the printing of T-shirts and hoodies, the printing distance can be adjusted with just one click. Operation is very simple.
High carbon alloy steel plate surgery, can protect the overall body more durable. It comes with white ink circulation and automatic cleaning function, which saves ink and protects the print head.
The two-way printing upgrade simplifies the two-way calibration, which can be completed in one calibration, reduces the appearance of white background, and improves the stability of mass production.
Find Out More
Some Applications with Our DTG Solution
Whether you are a growing t-shirt printing business already at a high-production level or a screen printer looking towards hybrid apparel decoration, we have a perfect textile printing solution for you.
Incredible Overall Value!
1 Year Warranty
Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
DTG Starter Kit
Starter kit pack, including DTG pigment inks, pretreatment liquids, and the user's guide.
Rip Software
Purchase a machine, and you will receive $500 in rip software for free. CADlink, SAI Flexi, Acrorip, and PP,MainTop are available as options.
Online Technical Support
The expert team will serve you online and solve any problems you encounter for free.
