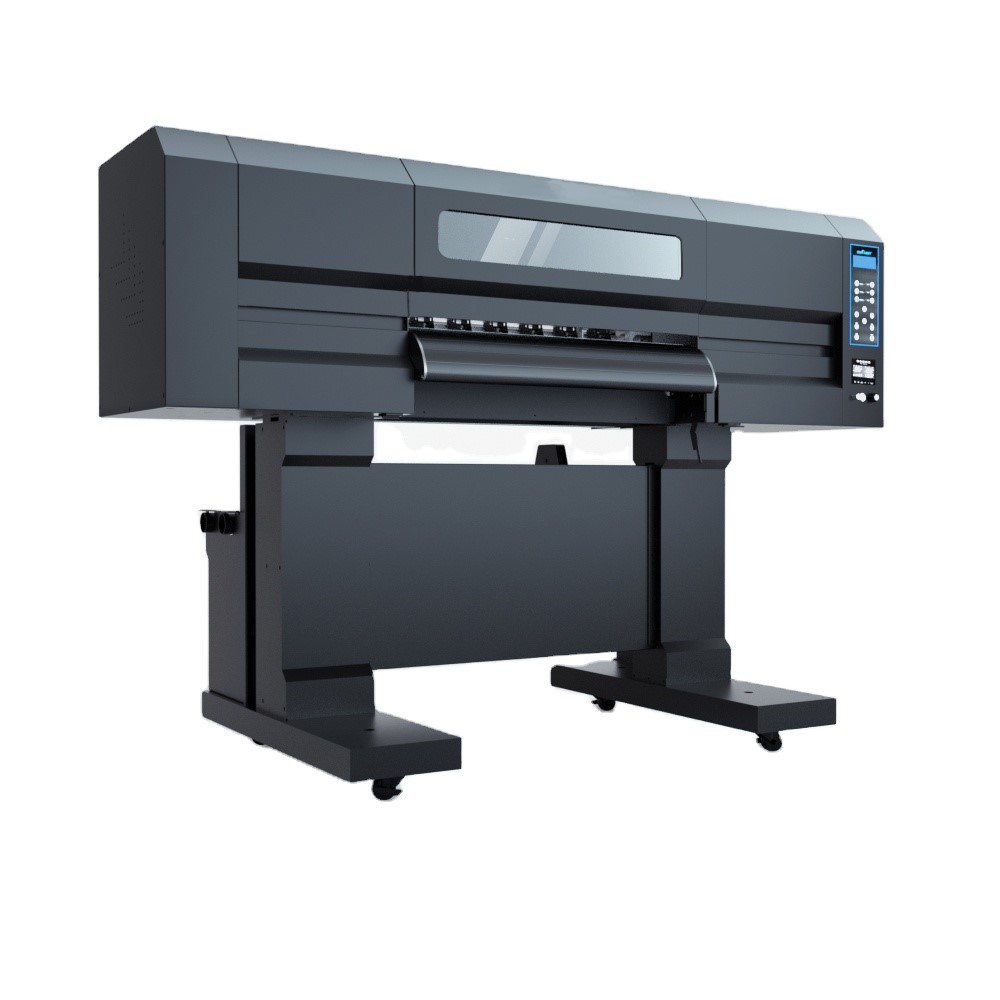

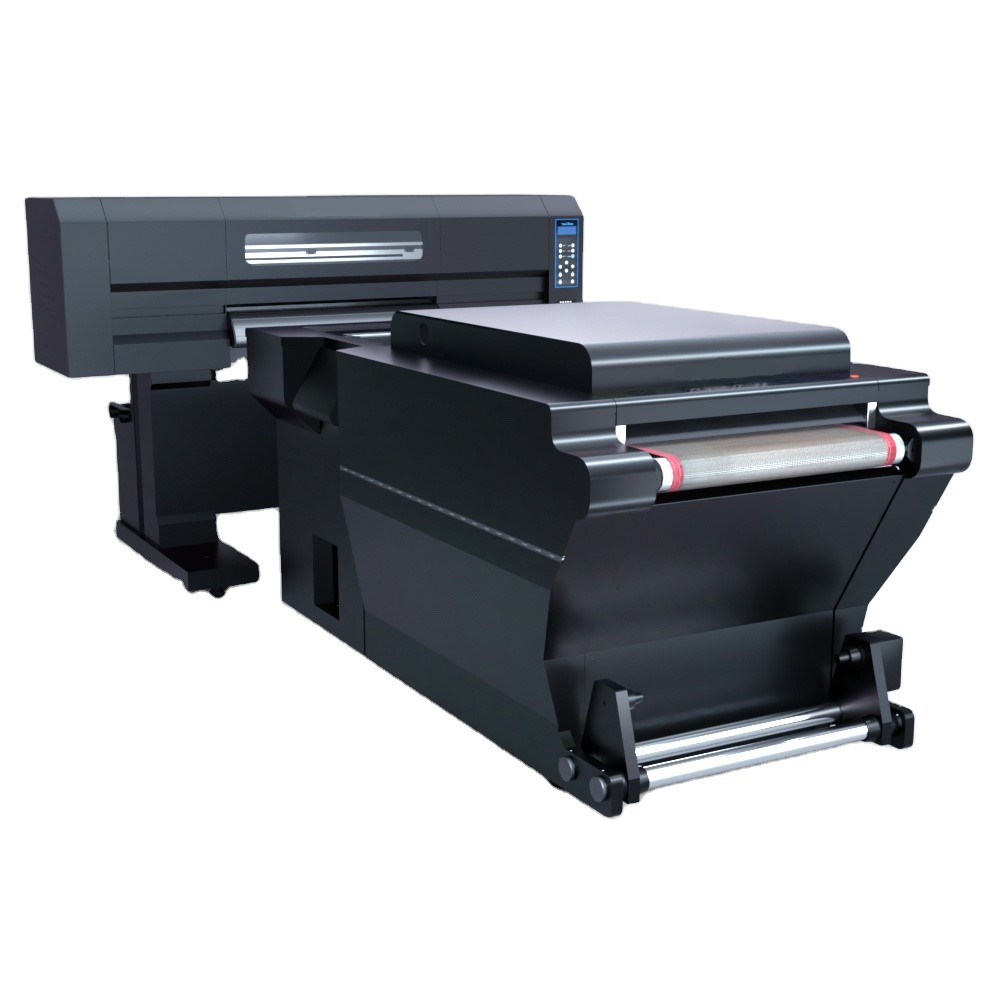

DTF-EP700-B- series DTF Printer & Shaker
Rated 5.00 out of 5 based on 1customer rating
(1 customer review)
Feature:
DTF EP700-B is a comprehensive & cost-effective digital transfer printing solution for garments.

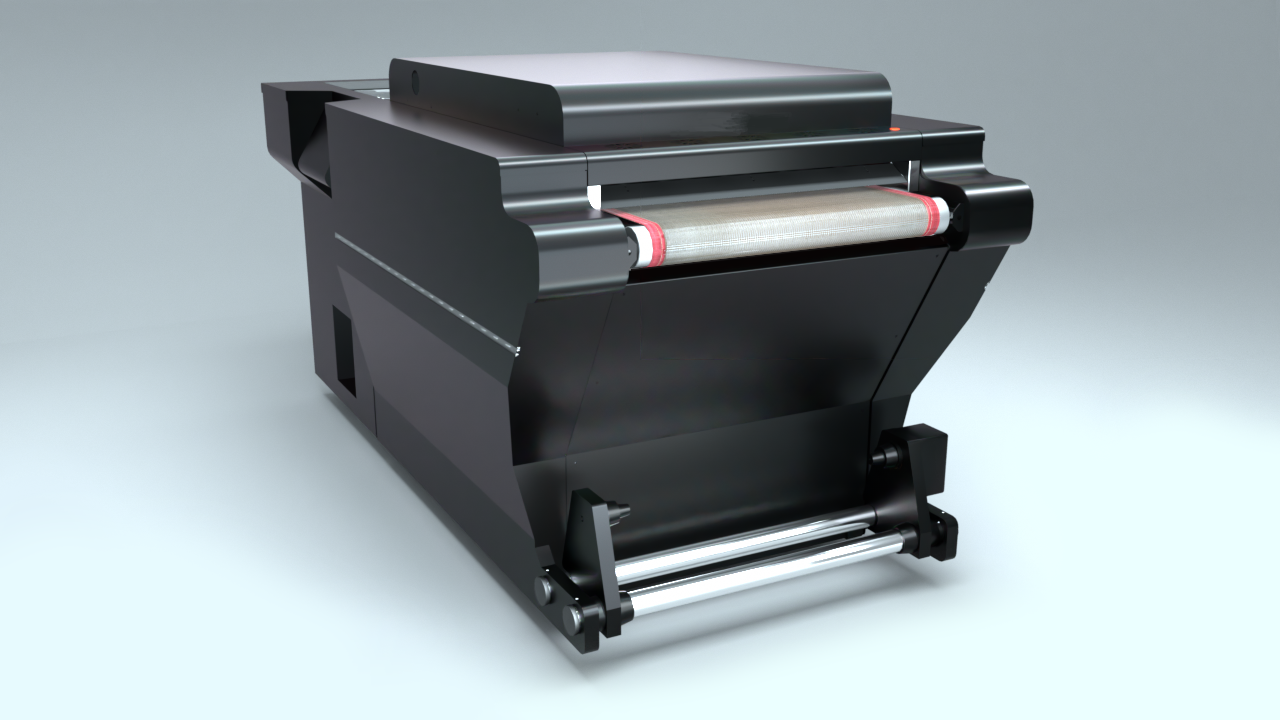

If you are a garment manufacturer & supplier who is looking for a digital multicolor printing solution for garments at a very low price, this one is your best choice! New Generation PET Film Printing Machine with Powder Shaking integrates vinyl powder coating and drying into one machine. When the film/vinyl is dried out, it can transfer print onto any kind of garment.
Print Head: Epson I3200 print heads.
Max Print Size: 600mm Print Width.
Print Speed: 3.5-12m2/h
Ink Type: CMYK+W
Read More >>
Warranty: 24 months (Ink system, printheads and ink capping are not covered)
International Shipping: DHL,FedEx,By Air,By Sea
More Configuration & Quotation
Product Brochure
New Feature of DTF EP700-B Printer
DTF EP700-B Printer is equipped with the same core technology as Star III series, but the price is more acceptable. If you want to try new printing techniques and have a limited budget, then this one is your first choice! DTF features
White Ink Circulation System
The drying process can start immediately after printing. The white ink layer on top dries to the touch and is ready to receive a specialized powder adhesive coating.
DTF-icon07
Ink Shortage Alarm Device
The ink shortage alarm device can add ink in advance, so as to avoid printing abnormalities caused by ink shortage.
DTF Printer Specification
|
SMT-DTF 2in1 PET film Printer |
2in1 PET film DTF printer-SPECIFICATION |
|
Max print size |
PE film printer max print size:70cm |
|
Print color,resolution |
4-8 Color (CMYK)+4W,DPI 1200/2400/3600 |
|
Power supply standard |
220V 50HZ/60HZ |
|
print mode |
4Pass 6Pass 8Pass 16sqr/h 13sqr/h 10sqr/h |
|
Power Rate |
Printer Set:230V Powder dryer set:2.4KW |
|
Heat Ironing temperature |
Heat 230.C;cold peel away film: 160-170.C |
|
print weight |
Max material weight 15-50KG |
|
Net / Gross Weight |
Printer set:130KG Powder dryer set:260KG |
|
Size ( L*W*H ) |
2in1 whole set :320*152*143CM |
|
Package ( L*W*H ) |
Printer set:168*75*68CM Powder dryer set:185*131*136CM |
|
Print head daily maintainence |
Auto ink wipping,scraping ,moisturizing,cleaning system, |
|
NOTES: All height of plate can customize. |
Head :2-4 pcs4720/i3200 =CMYKCM+4W; |
Meet SMT DTF-PRINTER
View more video guidance>>
Professional Features
DTF-SMT BE series has greatly improved printing technology: Front, middle and rear heating, White ink filtration and circulation system, Cart collision avoidance function, THK mute rail, and Smart touch panel. Which improves the stability of the machine, prolongs the service life of machine parts, and makes the machine more efficient.
With three-stage heating in the front, middle, and rear, the drying process can start immediately after printing. The white ink layer on top is dry to the touch and can accept a specialized powder adhesive coating.

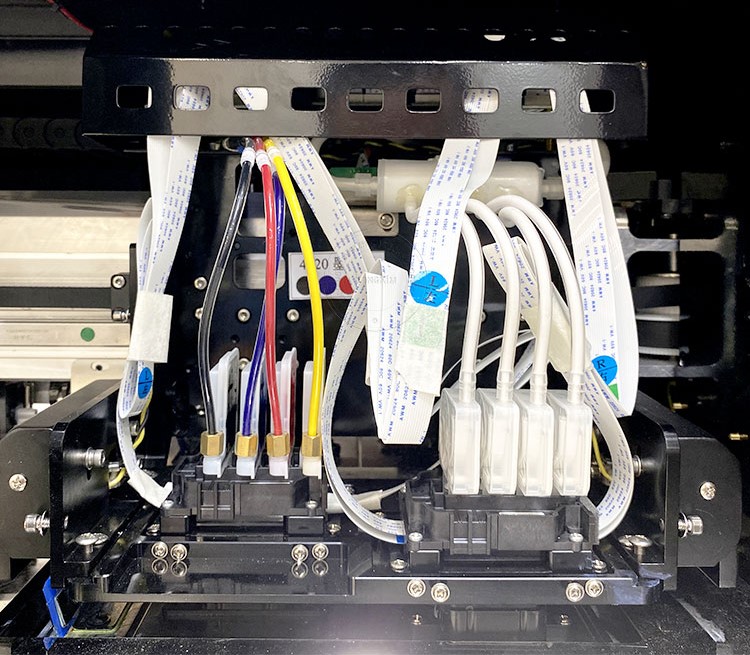

The continuous circulation of white ink can effectively prevent precipitation and reduce the probability of clogging the print head. After effective filtration, it can effectively prolong the service life of the print head and save costs.
The anti-collision function of the trolley can effectively protect the nozzle, greatly delay the damage of the nozzle, prolong the use time of the nozzle, and save the production cost.
Using Japan's high-precision mute guide rail, the operation is more stable and the noise is low.
Intelligent operation panel, multi-language settings, easier operation, and effectively improve work efficiency.
BUY 1 GET More !
Buy any SMT PRINT DTF machine, you will get the highest quality DTF starter kit printing supplies for free.
DTF Starter Kit Includes: Film: 0.6m*100m/0.3m*100m roll size
DTF Powder: 2 kg (4.4 lbs)
DTF Ink: 1000ml*5 (c,m,y,k+w)
Rip software: Flexi Print/Maintop
SMT PRINT DTF environment settings
SMT PRINT DTF instructional video
